Wedge Wire Trommel Screens

Product Code: 2220
Category:Wedge Wire Screen Cylinders
Material:Stainless steel 316L
Properties:wedge wire screen cylinders
Application:ore choosing,petroleum,chemical,water,plastics,food

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Wedge Wire Trommel Screens


Wedge Wire trommel screens are highly efficient cylindrical rotating Wedge Wire screens used to separate solids from liquids or solids from solids.


With trommel screens, the flow of materials is fed into the inside of the drum and the screen and centrifugal rotating action will force any particles smaller than the slot size through the screen and any particles larger than the slot size off the end of the screen. The wedge shape of the profile wires helps to minimise pegging and blinding. We can supply complete trommel units, including a motor and base frame, or a replacement screen for your existing unit.



 Applications of Wedge Wire Trommel Screens:



-- Sugar industry
-- Fruit processing industry
-- Mineral processing
-- Sewage treatment
-- Fertilizer processing
-- Abattoirs.
-- Used in many industries like for Solid Liquid Separation.
-- Poultry, and seafood processing;Municipal waste treatment system
-- Fruit and vegetables processing;Industrial waste treatment system
-- Snack and frozen food processing;Pulp & Paper Industrial processing
-- Brewing and wine processing;Tanning Industrial processing
-- Chemical processing Meat processing



Features for Wedge Wire Trommel Screens:



1.Drum screen mesh is not easy to jam.
2.Smooth operation, low noise.
3.Simple structure, convenient maintenance.
4.Sieve tube can be closed, airtight dust easily.
5.The whole machine has high reliability, one-time investment is less.
6.Adopts special mesh, high screening efficiency, long service life.

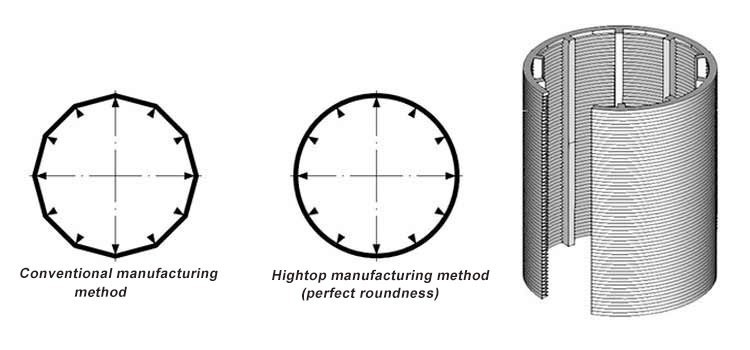

Process for Wedge Wire Trommel Screens:



SS 304 wedge wire Rotary drum screen
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required


Wedge Wire trommel screens


Specification of the Wedge Wire Trommel Screens


Wedge Wire trommel screens

Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4
117
0.04
395
6
2.2*3.0
3.8mm/22
4
114.3
0.04
395
6
2.3*3.0
3.8mm/22
6
168.3
0.04
252
8
2.3*3.5
3.8mm/32
8
219.1
0.01
399
10.5
3.0*5.0
3.8mm/48
8
219.1
0.02
370
10.5
3.0*5.0
3.8mm/48
8
219.1
0.04
323
10.5
3.0*5.0
3.8mm/48
10
273.1
0.01
206
11
3.0*5.0
3.8mm/50
10
273.1
0.02
191
11
3.0*5.0
3.8mm/50
10
273.1
0.04
167
11
3.0*5.0
3.8mm/50

Production And Sales of Wedge Wire Trommel Screens


With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material.
