Wedge Wire Self Cleaning Filter

Product Code: 2771
Category:Sieve Plate Screen
Material:stainless steel
Properties:wedge wire screen
Application:cleaning filter

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge Wire Self Cleaning Filter


Our Wedge Wire Self Cleaning Filter are all custom made and can be designed and built to fit any screening equipment in any specified width and length. Need a stainless steel flat panel screen on an extra-large scale? No problem. Plus, size, shape and spacing of profile wire are engineered to meet your special job requirements. Individual wire on the working surface of each wedge wire flat panel screen can be manufactured at a tilt to better serve your needs.

Wedge Wire Self Cleaning Filter

Applications of Wedge Wire Self Cleaning Filter

Use in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Features of Wedge Wire Self Cleaning Filter

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

Advantages of Wedge Wire Self Cleaning Filter

-- A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.

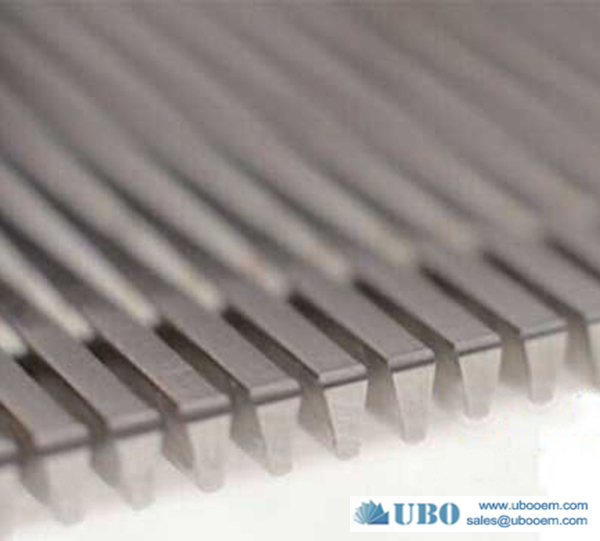

-- A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.

-- A uniform and efficient well development due to the continuous slot opening.

-- Offering great strength. precision, long service life.

Specification of the Wedge Wire Self Cleaning Filter


Wedge Wire Self Cleaning Filter

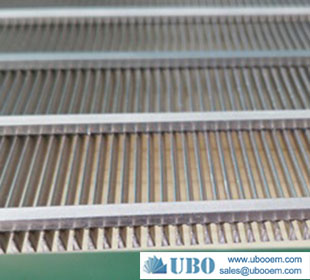

Opening wedge wire screen panel
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)

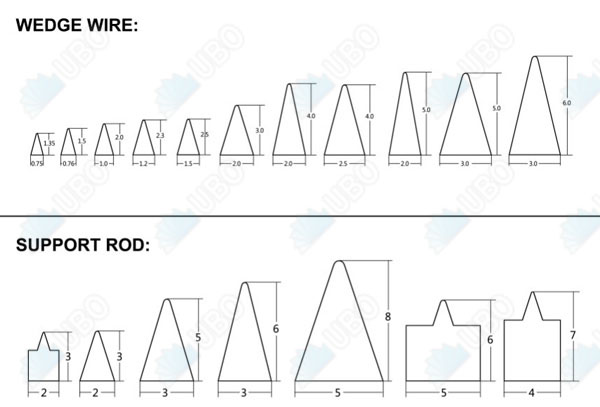

Wedge Wire(profile wire ) (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Width
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot opening:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Production And Sales of Wedge Wire Self Cleaning Filter


Package: in wood case

Delivery Time: 5-25 days
