Stainless Steel Wedge Wire Filter Nozzles for Water Distribution

Product Code: 3386
Category:Water Strainer & Nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to Us Start Order


Email:sales@ubooem.com

Description of Stainless Steel Wedge Wire Filter Nozzles for Water Distribution


Wedge wire screen nozzle filters are used in liquid/solid or gas/solid separation. Their design and quantity will vary depending on application and customer-flow requirements. Nozzles allow a more effective use of the treatment media.

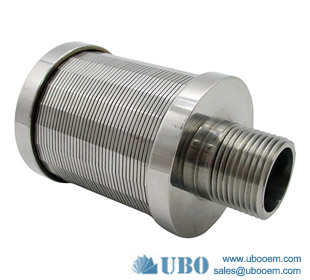

Water distribution device filter nozzlesWater distribution device filter nozzles



Application for Stainless Steel Wedge Wire Wedge Wire Filter Nozzles



-- Collectors and distributors installed uniformly across a plate or a header lateral arrangement

-- Demineralizers, water softeners and in pressure and gravity sand filters

Usually, stainless steel wedged screen nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

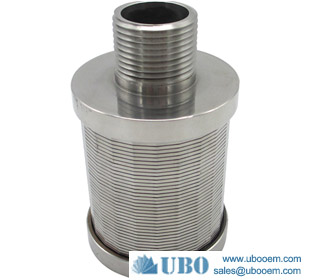

Water distribution device filter nozzlesWater distribution device filter nozzles



Advantages for Stainless Steel Wedge Wire Wedge Wire Filter Nozzles for Water Distribution



1) Type 316L stainless steel construction.

2) Continuous slot design provide large circulation area

3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.

4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.

5) Wedge wire screen is highly resistant to plugging.

6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.

7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Water distribution device filter nozzles

Specification of the Stainless Steel Wedge Wire Filter Nozzles for Water Distribution


stainless steel slimline nozzle internal filters

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3. Thread according to requirement

Production And Sales of Stainless Steel Wedge Wire Filter Nozzles for Water Distribution


Water distribution device filter nozzles
