SUS340 oil sieve tube for ground water

Product Code: 2773
Category:Wedge Wire Screen Cylinders
Material:SUS340
Properties:wedge wire screen
Application: mining, coal, petroleum, chemical fertilizer, food, environmental protection and other industry to sew sieve net, oil filter, salt

Email to Us Start Order


Email:sales@ubooem.com

Description of SUS340 oil sieve tube for ground water

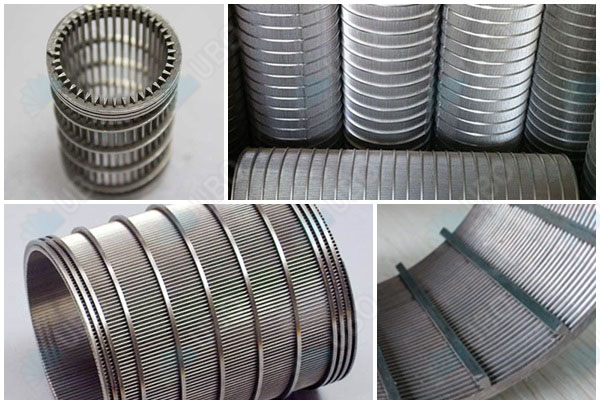

SUS340 oil sieve tube for ground water is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). It has a structure and high open area, as well as accurate slot dimension.

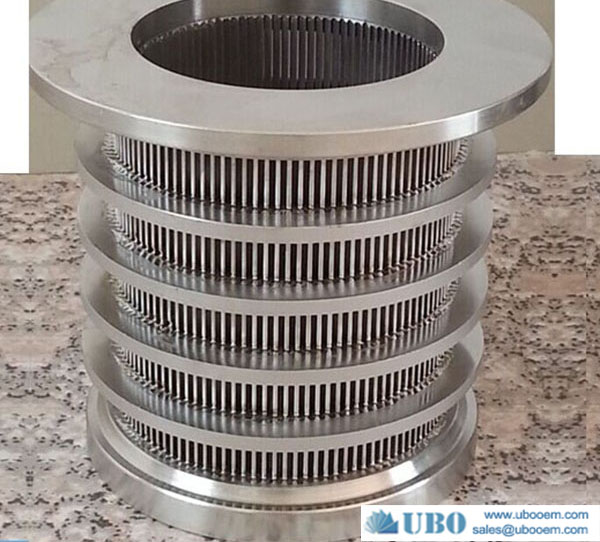

SUS340 oil sieve tube for ground water

Applications for SUS340 Oil Sieve Tbue for Ground Water:

The wedge wire screen cylinders can be used as rotary screens.
Wedge wire screen cylinders are widely used in the mine, coal, mineral and other applications for heavy duty and high load filtering, sizing and screening.

Characteristics for SUS340 Oil Sieve Tbue for Ground Water:

The welded stainless steel wire wrapped pipe screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Features for SUS340 Oil Sieve Tbue for Ground Water:

V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are just barely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screen and clog it.

Continuous Slots: The special design gives continuous slot opening across the periphery and length of screen.

Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.

Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.

Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces the power required to pump same quantity of water. Power saving of around 20-25% is observed.

Specification of the SUS340 oil sieve tube for ground water

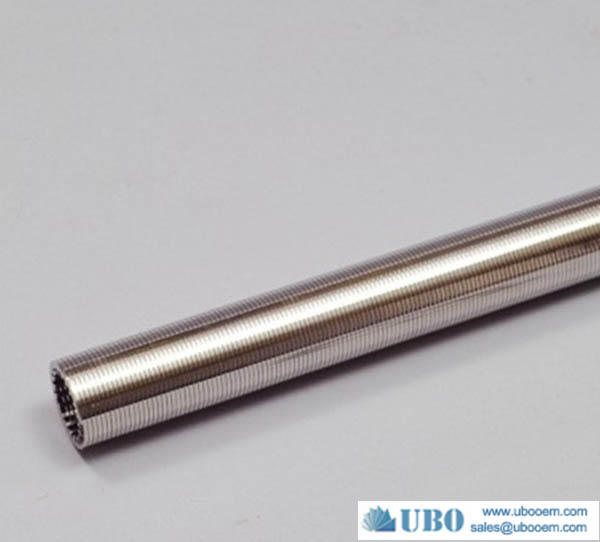

SUS340 oil sieve tube for ground water

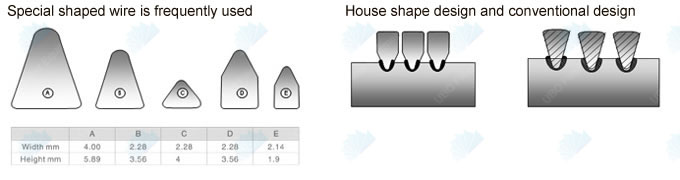

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

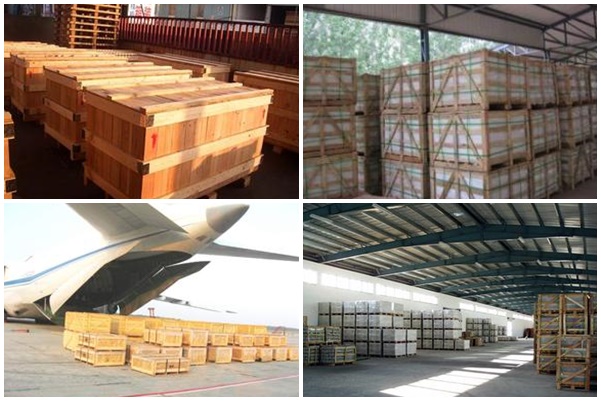

Production And Sales of SUS340 oil sieve tube for ground water


SUS340 oil sieve tube for ground water
