|Category:||Water Strainer & Nozzle|
|Material:||stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.|
|Properties:||wedge wire screen nozzle|
|Application:||water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant|

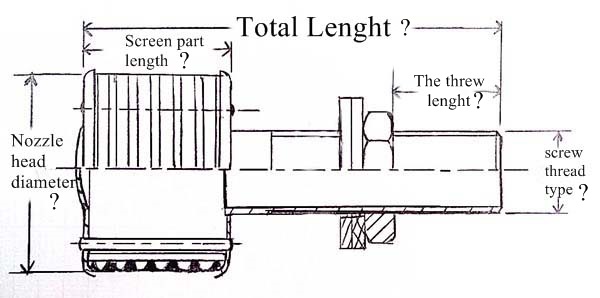

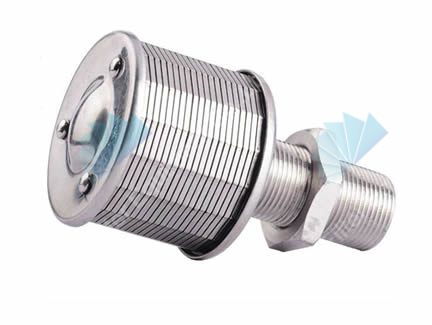

SS304 Water treatment nozzle in Ion exchange resin container have a screen pipe. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.
Flow capacity of one pieces of filter nozzle could handle 3 m3/hour. Up to this flow capacity, almost no pressure loss happened. But to handle higher flow capacity, the pressure loss of each nozzle will be increasing accordingly. This fillter nozzle type is the cheapest sellection for filter media retention.
The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.
1) Type 316L stainless steel construction.
2) Continuous slot design provide large circulation area
3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5) Wedge wire screen is highly resistant to plugging.
6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
|Support Wire Number||Filter Direction|
