Dual Pre-Packed Well Screen

Product Code: 2185
Category:Wedge Wire Screen Cylinders
Material:wedge wire 304 316L
Properties:Wedge Wire Cylinder
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Dual Pre-Packed Well Screen

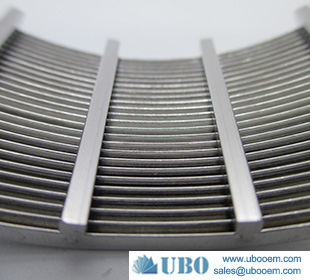

    Wire wrapped stainless steel wedge wire screen meshs are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Wire wrapped stainless steel <a href='http://www.ubowedgewire.com/' _cke_saved_href='http://www.ubowedgewire.com/' target='_blank'>wedge wire screen</a> mesh

Application for Dual Pre-Packed Well Screen:

Stainless steel oil flitered nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Features for Dual Pre-Packed Well Screen:

Robust design
Economical sand control solution for marginal or mature wells with remedial workovers
Robust design for superior stress and impact resistance.
Heavy duty base pipe and cold-wound welded, non-clogging dual wedge wire screen provides outstanding sand retention and maximum production efficiency
Screen slot is available in a range of micron ratings and annulus allowing the product to be customized for gravel pack media or formation sand
The aggregate gravel pack can be resin or non-resin coated.
Specialized metallurgy available upon request as per API/NACE Standard.

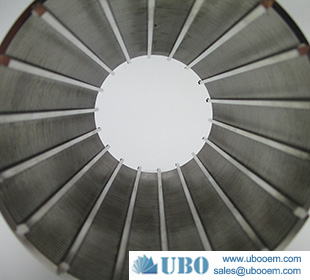

Dual Pre-Packed Well Screen

Specification of the Dual Pre-Packed Well Screen


Dual Pre-Packed Well Screen



Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

 up to 6 meters.

Diameter

 from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Dual Pre-Packed Well Screen


Dual Pre-Packed Well Screen
