Centrifugal dehydrating screen

Product Code: 2269
Category:Centrifuge Screens&Baskets
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:centrifuge screens and baskets
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

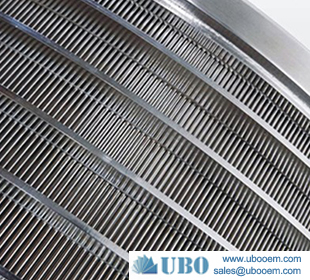

Description of Centrifugal dehydrating screen


stainless steel screen basket and profile screens are all custom made. Length, width, shape and spacing of profile wire are engineered to meet your special job requirements. And the individual wire on the working surface of the wedge wire screen or stainless steel screen can be manufactured at various angles to better serve your needs.



Applications for Centrifugal Dehydrating Screen:



Screen basket is mainly used in centrifuge dewatering, widely used in coal, chemical, and metallurgical industries. Screen basket is a key part of centrifuge .It is high-speed rotating parts. When work, the basket should not only bear the vibration load, but also bear the impact of coal and water. So it requires relatively high strength and precision.



Features for Centrifugal Dehydrating Screen:



1) Combining the latest technology and years experience into a a whole.

2) Key components introduced abroad, lone service life, low maintenance cost.

3) All parts contact with material are stainless steel, no material contamination.

4) Sieve basket is calibrated through dynamic equilibrium by domestic authority body.

5) Sieve made from laser perforating on titanium alloy plate.

6) To facilitate the automatic design for centrifugal sieve group, CIP system and chain automatic control can be easily realized.

7) Advanced surface treatment technology ensuring the good looking and resistance of oil and dirt.

8) Nozzles tested by strict examination in pressure and flow rate

9) Big capacity, low power consumption, stable operation, high starch extraction rate and easy installation.

10) Widely used for starch extraction in starch processing factory.

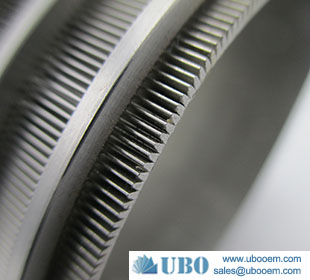

Centrifugal dehydrating screen

Specification of the Centrifugal dehydrating screen


Centrifugal dehydrating screen


Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

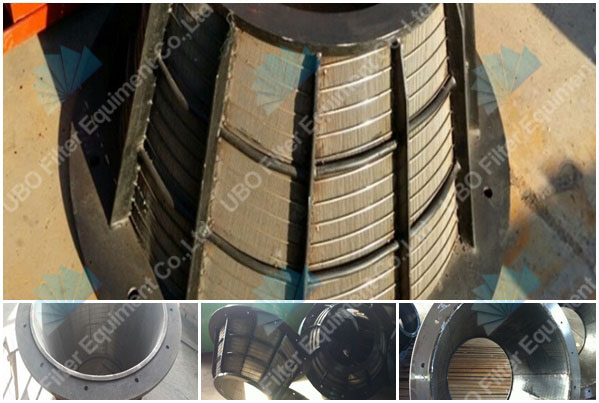

Production And Sales of Centrifugal dehydrating screen




Centrifugal dehydrating screen
