Titanium Metal Powder Filter strainer

Product Code: 2318
Category:Filter Strainer
Material:Stainless steel 304,304L,316,316L
Properties:filter strainer
Application:Filtration

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Titanium Metal Powder Filter strainer

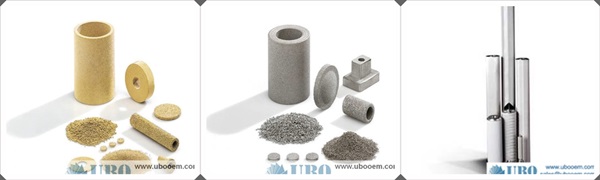

Titanium powder sintered filter made of titanium alloy powder sintered at high temperature, high filtration precision, good air permeability, high mechanical strength, high utilization of materials, suitable for high operating temperatures and impact resistance. Widely used in pneumatic components, chemical industry, environmental protection and other fields.


Applications for Titanium Metal Powder Filter Strainer:



• Steam filtration, de-dusting

• Water filtration, oil filtration, food and beverage filtration, chemical filtration

• Oxidizing liquid filtration

• Strong polar solvent filtration

• Decarburization filtration

• Viscous liquid filter

• Corrosive liquid filtration

• Liquid and gas filtration at high temperature and pressure condition

• Solid catalyst recovery



Features for Titanium Metal Powder Filter Strainer:



• Shape stability

• High filtering efficiency

• High permeability fiber

• High mechanical strength and good integrity

• Excellent corrosion, heat, pressure refining, and abrasion resistance

• Even distribution of pores catalysis recycling accurate filtering

• Good permeability

• Applied under ultra low temperature, high temperature

• Reusable after cleaning

• Long working life

Titanium Metal Powder Filter strainer


Ubo Filter Co.,Ltd is specialized in producing and distributing Fiber & Synthetic Metal Filters , Stainless Steel Polyer Filter Candle ,Chemical pressure sintered metal net filter ,Porous metal fiber felt filter cartridgeLiquid Solid Pleated Filter Cartridge,316 Metallic Fiber Felt Filter Element,Synthetic Pleatd Metal Cartridge Filter, etc

Specification of the Titanium Metal Powder Filter strainer


Filter Medium: Titanium metal powder

Construction Method: Welded( no adhesives)

Removal rating(norminal): 0.45um,1.0um,3.0um,5.0um, 10um,20um,30um, 50u,80um,100um 120um

Length: 125mm,250mm,300mm,500mm,750mm,1000mm

O.D.: Φ60mm (standard)

endcap: M20 M30 222 226 DOE

Operating Temperature: 280℃

Maximum Pressure Difference: 0.3Mpa

Maximum Operating Pressure: ≤ 0.45Mpa

Production And Sales of Titanium Metal Powder Filter strainer


Each product is packed with bubble bag and then few bags to a wooden case (fumigation certificate)
