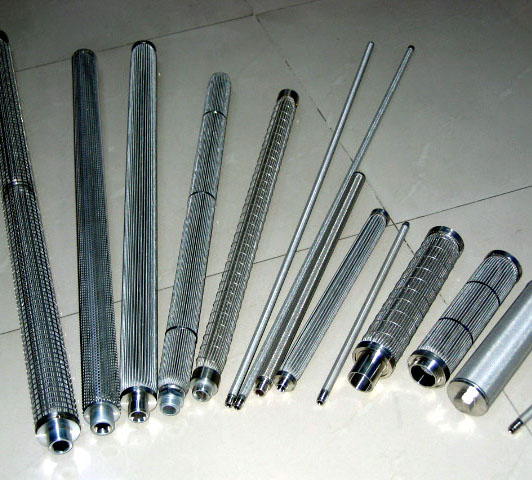

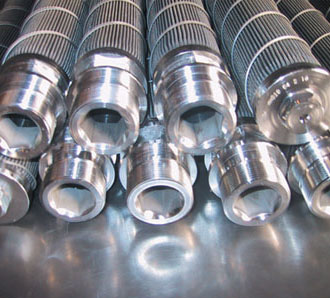

Porous metal fiber felt filter cartridge

Product Code: 2278
Category:Pleated Filter
Material:Stainless steel 316
Properties:pleat filter
Application:Filtration

Email to Us Start Order


Author: zhaozhao
Email:sales@ubooem.com

Description of Porous metal fiber felt filter cartridge


Porous metal fiber felt filter cartridge is machined by SS sintered metal fiber felt and SS metal woven mesh pleating.

The sintered fiber could be made into multi-layer structure of hole diameter from coarse to thin, enjoys high porosity and holding capacity.

The filter element made by metal woven mesh have the features of high strength, cleanable, high temperature resistance etc.

Main features:

1. The area adds much by pleating

2. High porosity and excellent permeability which results in low pressure drop and large flow.

3. High strength, high temperature and corrosion resistance.

4. Regenerative.

Main application:

1. The filtering of polymer melt such as polyester, viscose and membrane manufacturing.

2. The filtering of high temperature gas and steam.

3. The filtering of high temperature liquid and sticky liquid.

Product details:

1.Material: SUS316L

2.Micron:5-60um

3.high chemical and corrosion resistance

Ubo Filter Co.,Ltd is specialized in producing and distributing
 Fiber & Synthetic Metal Filters , Stainless Steel Polyer Filter Candle ,Chemical pressure sintered metal net filter ,Porous metal fiber felt filter cartridgeLiquid Solid Pleated Filter Cartridge,316 Metallic Fiber Felt Filter Element,Synthetic Pleatd Metal Cartridge Filter , etc
Welcome to contact us for more information and   cooperation.0086-0311-83289301

Specification of the Porous metal fiber felt filter cartridge


pleated filter cartridge or  polymer melt mesh  cartridge,is made of   stainless  steel  wiremesh  ,or sintered stainless fiber felt ,the  former  is made  of  stainless steel  wire  byweaving together.and this kind of  filter cartridge  takes  the advantagest of smooth wire pore  ,easy towash ,high  temperature resistance,  corrosion resistance,fast wire meshwithout migration ,long service life , etc.the sinteredstainless fiber  felt is a kind of  high precision  filter material made of  stainless stleel fiber by sintering  in  high  temperature, angthis kind of filter caritridge  take the advantages of high porosity good    permeability,high dirt holding capacity  ,high regeneration capacity.etc.

main characters:

1. large filtration area(5--10time as common  cartridge)  2. high  precision (1-300um)

main connections:

1. standard (e,g.222,220.226) 2. fast interface  3.thread     4.flange  5. tie rod   6.special   customized

Applications:

 mainly  used in high molecular polymer  ,water andoil  treatment ,high temperture gas  filtration ,

medicine filtration etc.

Production And Sales of Porous metal fiber felt filter cartridge


pleated filter cartridge or  polymer melt mesh  cartridge,is made of   stainless  steel  wiremesh  ,or sintered stainless fiber felt ,the  former  is made  of  stainless steel  wire  byweaving together.and this kind of  filter cartridge  takes  the advantagest of smooth wire pore  ,easy towash ,high  temperature resistance,  corrosion resistance,fast wire meshwithout migration ,long service life , etc.the sinteredstainless fiber  felt is a kind of  high precision  filter material made of  stainless stleel fiber by sintering  in  high  temperature, angthis kind of filter caritridge  take the advantages of high porosity good    permeability,high dirt holding capacity  ,high regeneration capacity.etc.

main characters:

1. large filtration area(5--10time as common  cartridge)  2. high  precision (1-300um)

main connections:

1. standard (e,g.222,220.226) 2. fast interface  3.thread     4.flange  5. tie rod   6.special   customized

Applications:

 mainly  used in high molecular polymer  ,water andoil  treatment ,high temperture gas  filtration ,

medicine filtration etc.
