Basket and Tee Strainers

Product Code: 2078
Category:Basket Filters
Material:Stainless steel 316L
Properties:basket filter
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of Basket and Tee Strainers

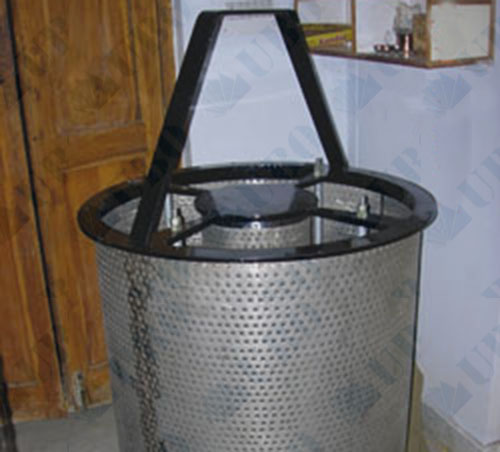

Replacement Baskets & Screens

Quick delivery of replacement and/or modification* of all types, baskets, screens and straining elements.

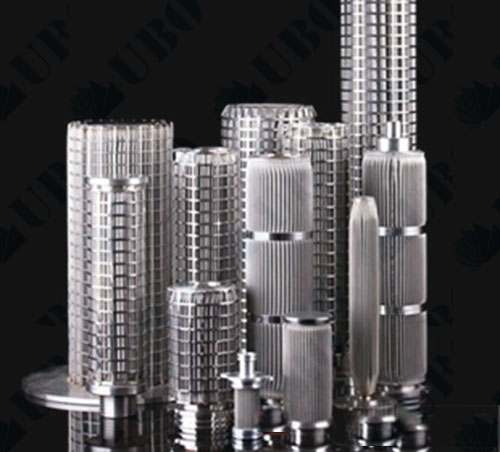

Basket and Tee Strainers



















Basket and Tee Strainers made of stainless steel sintered wire mesh, stainless steel wire mesh and stainless steel fiber sintered felt. Filtering accuracy 0.5-200μm.
Having good permeability, high strength, corrosion resistant, easy to clean and anti-washing, not damaged, no material from other characteristics.
Uses: mainly used for polyester cylindrical filter, oil, pharmaceutical, food and beverage, chemical products filter, also used to filter water and air and other media.
Metal Sintered Powder filter candleis made of a new type of filtering separation material---sintered metal powder multipore material, which is made with industry metal powder in high temperature.
Fittings and connector can be bonded to the porous parts by welding (TIG welding), machining or directly welded during sintering process.

Basket and Tee Strainers Applications, including, but not limited to:

1. Gas and liquid filtration
2. Solid catalyst recovery
3. Filtration of slurry oil and other petrochemical products
4. Fluidization
5. Powder conveying
6. Aeration and other applications in various industrial fields.

Specification of the Basket and Tee Strainers


NOM. SIZE 2 2 1/2 3 4 5 6 8
OD 150 3 7/8 4 5/8 5 1/8 6 5/8 7 1/2 8 1/2 10 3/4
300 3 7/8 4 5/8 5 1/8 6 5/8 7 1/2 8 1/2 10 3/4
600 4 1/8 4 7/8 5 5/8 6 7/8 9 1/4 10 1/4 12 3/8
ID 1 3/4 2 1/4 2 3/4 3 1/2 4 5/8 5 1/2 7 1/8
H 4 1/2 5 1/2 6 1/2 8 1/2 10 1/2 13 17
L 3 1/2 4 4 1/2 6 7 1/2 9 12
NOSE 1 1 1 2 2 2 2



NOM. SIZE 10 12 14 16 18 20 24
OD 150 13 1/8 15 7/8 17 1/2 20 21 3/8 23 5/8 28
300 13 1/8 15 7/8 17 1/2 20 21 3/8 23 5/8 25
600 15 1/8 17 3/8 19 1/8 22 13 7/8 26 5/8 30 7/8
ID 9 10 7/8 12 5/8 14 1/2 16 3/8 18 3/8 22 3/8
H 21 25 26 29 1/2 33 37 44
L 14 16 1/2 17 19 21 24 28
NOSE 3 3 4 4 6 6 10

Production And Sales of Basket and Tee Strainers


Basket and Tee StrainersBasket and Tee Strainers
