PLF Filter Leaves

Product Code: 2120
Category:Leaf Filters
Material:Stainless steel 316L
Properties:leaf filters
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of PLF Filter Leaves


PLF filter leaves is a kind of the most widely used standards for the structure of sintered network. This sintered network is the five-story stainless steel wire mesh stacked together in sequence, after a new type of vacuum sintered filter material.

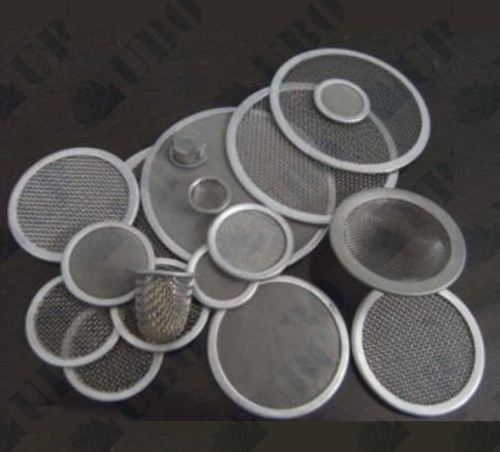

PLF filter leaves

PLF filter leaves CONSTRUCTION:

1) protective layer

2) filter control layer

3) dispersion layer

4) supporting skeleton layer

5) skeleton layer of five parts.

THE PRESSURE PLF filter leaves OF STABILITY, STRENGTH, EASY-TO-CLEAN FEATURES

PLF filter leaves Features:

1) high mechanical strength and compressive strength. Machining, welding and assembly properties of a good, easy to use.

2) Filter layer on the second floor so that it has been well protected and diversion, filtering precision can reach uniform filter performance, ensure that it has high stability.
3) Selection of 316L material, good corrosion resistance, heat resistance, and can be used to -200 °C ~ 480 °C temperature and acid-base environment, filtering.

PLF filter leaves Application:

1) Aerospace, aviation, petroleum, chemical, metallurgy, machining, pharmaceutical, food, sythetic fiber, film, enviromental protection industries in respect of filtration and purification, gas-solid, liquid-solid, and gas-liquid seperation, cooling, gas distribution, liquidization bed, gas sampling collection, shock reducing, sound attenuation, inflaming retarding

2) Distribution and cooling material in high temperature condition;

3) material used for gas distribution and fluidization bed;

4) material requiring high precision,stable performance in high temperature;

5) high pressure backwashed oil filter.

Specification of the PLF Filter Leaves


Model

DN(mm)

Filter Precision(um)

Nominal Pressure(MPa)

Filter Disc Size(mm)

Filter Disc Number

Inner

Outer

SPL-15

15

80

100

180

0.8

20

40

2-30

SPL-25

25

30

65

2-20

SPL-32

32

30

65

2-30

SPL-40

40

40

95

2-34

SPL-50

50

60

125

2-22

SPL-65

65

60

125

2-34

SPL-80

80

70

155

2-40

SPL-100

100

70

155

4-40

SPL-125

125

90

175

4-40

SPL-150

150

90

175

6-40

SPL-200

200

90

175

8-40

Production And Sales of PLF Filter Leaves

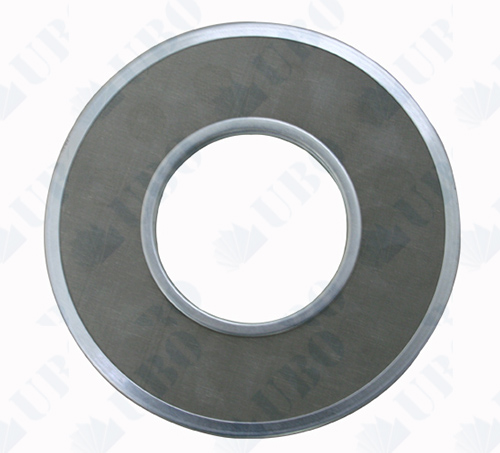

PLF filter leaves
