5-Ply Mesh Leaf Filter

Product Code: 1782
Category:Leaf Filters
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Filter disc
Application:filters, strainers, architectural screens, water treatment underdrains, media support grids and overlays, infiltration gallery screens

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of 5-Ply Mesh Leaf Filter


The 5-Ply Mesh Leaf Filters are made of 5-layer sintered wire mesh laminates.This kind of filter cartridge has good capacicties such as the corrossion resistance,good air permeability,easy to back wash,high filter rating and etc.

Application for 5-Ply Mesh Leaf Filter:

1. It is mainly used for air conditioning, purifier, smoke lampblack machine, air filter, dehumidifier and filter, etc.
2. Suitable for different kinds of filter, dust removal and separation requirements.
3. Suitable for petroleum, chemical, mining, food, pharmaceutical, coating and other filter from all walks of life.

Feature for 5-Ply Mesh Leaf Filter:

1) Guaranteed easy to clean
2) Fits all AeroPress coffee brewers
3) Designed to never break (lifetime guarantee)
4) corrosion resistance, high temperature resistance, low temperature resistant, anti-acid, alkali proof, rust free,fire prevention, waterproof

Characteristics for 5-Ply Mesh Leaf Filter:

The benefits of filter disc is high quality and filtration capacity, precise fitting filter elements, optimum cost-performance ratio, constant quality control during production etc. It is widely used in melt filtration.

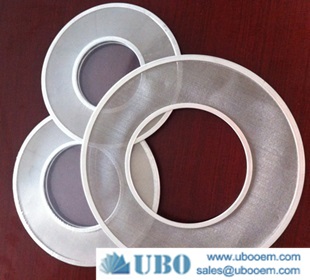

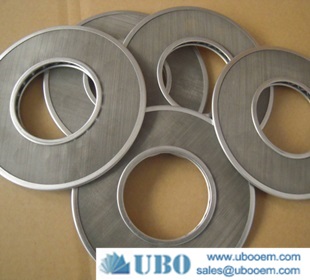

5-Ply Mesh Leaf Filter

Specification of the 5-Ply Mesh Leaf Filter


Mesh
Wire dia (mm)
Material (AISI)
12*64
0.58/0.40
304 ,316
24*110
0.36/0.25
304 ,316
14*88
0.50/0.33
304 ,316
30*150
0.18/0.14
304 ,316
40*200
0.14/0.11
304 ,316
50*250
0.10/0.071
304 ,316
80*700
0.06/0.05
304 ,316
165*800
0.071/0.04
304 ,316
200*1800
0.05/0.03
304 ,316
325*2300
0.03/0.025
304 ,316
400*2800
0.03/0.02
304 ,316

Production And Sales of 5-Ply Mesh Leaf Filter

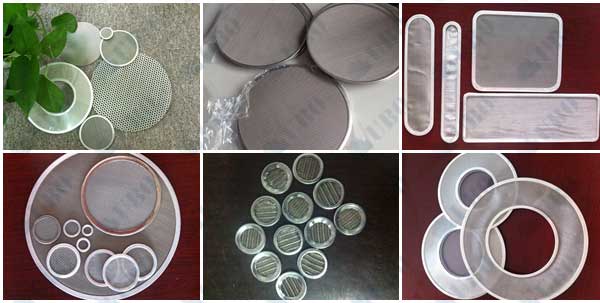

5-Ply Mesh Leaf Filter
