Stainless slot v wire screen nozzle filter for filtration tank,wedge wire nozzle,filter nozzle,tank

Stainless slot v wire screen nozzle filter for filtration tank

Product Code: 3299
Category:Water strainer & nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless slot v wire screen nozzle filter for filtration tank


Stainless slot v wire screen nozzle filter for filtration tank as the important parts used in the water treatment equipment for power plant,waste water processes, the Vee shape wire are stainless steel AISI 316L.Slot size from 0.2 to 0.25mm.
We can manufacture single wedge wire screen nozzle,double wedge wire nozzle,also used in the lon exchanger.

Stainless slot v wire screen nozzle filter for filtration tankStainless slot v wire screen nozzle filter for filtration tank

Advantages of Stainless slot v wire screen nozzle filter for filtration tank

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of Stainless slot v wire screen nozzle filter for filtration tank

water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin trap.

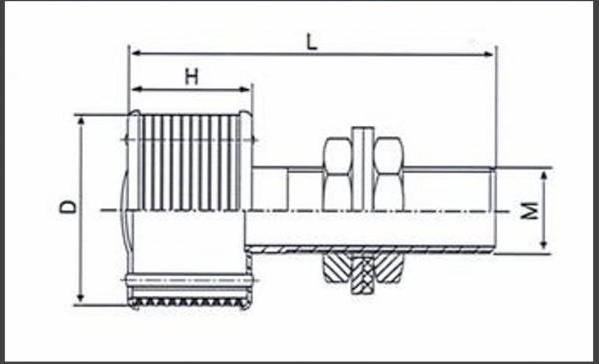

Specification of the Stainless slot v wire screen nozzle filter for filtration tank


Stainless slot v wire screen nozzle filter for filtration tank

No.

(mm)TYPE

OD

(mm)

 ID

(mm)

Support wire Number

Filter direction

1

SRD25.4

25.4

18.6

12

FOTI

2

SRD 33

33

24

8

FOTI

3

SRD 37

37

28

8

FOTI

4

SRD 40

40

31

8/10

FOTI/FITO

5

SRD 45

45

36

10/12

FOTI/FITO

6

SRD 48

48

38

12

FOTI/FITO

7

SRD 60

60

51

12

FOTI/FITO

8

SRD 70

70

61

12/18

FOTI/FITO

9

SRD 85

85

76

18

FOTI/FITO

10

SRD 110

110

101

24

FOTI/FITO

11

SRD120

120

111

24

FOTI/FITO

Production And Sales of Stainless slot v wire screen nozzle filter for filtration tank


Stainless slot v wire screen nozzle filter for filtration tank
