Backwashing Filter Bottom Distributor 304 Screen Nozzle

Product Code: 1839
Category:Water strainer & nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:distributor nozzle
Application:water treatment, oilfield, mining, water well,food industry, filtration

Email to US Start Order


Author: Maria
Email:sales@ubooem.com

Description of Backwashing Filter Bottom Distributor 304 Screen Nozzle

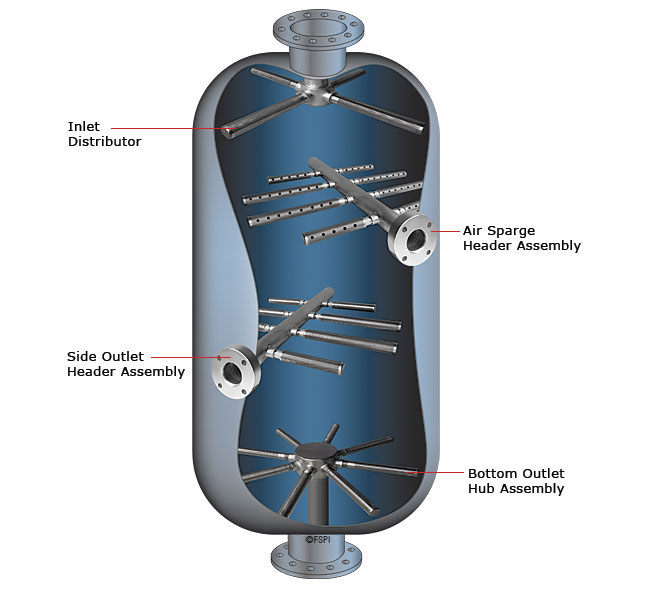

lateral systems may have multiple tiers of wedge wire screen laterals.

Header lateral systems are available for larger diameter filters. Wedge wire screen laterals make excellent collectors.  A perforated pipe distributor can be added to improve back-wash distribution and increase strength.

Wedge Wire screen cylinders can be designed with slot openings and wires running radially onthe outside for flow from outside to inside. Or they can be positioned axially on the inside of the cylinder  for flow from inside to outside.

 Economical wedge wire screen nozzles can be used as collectors in false bottom (tube sheet) vessel installations.

Features of Backwashing Filter Bottom Distributor 304 Screen Nozzle

profile, wedge shape.
support rod .
strong welding.
everage slot sizes.
perfect roundness .

           Backwashing Filter Bottom Distributor 304 Screen Nozzle

Specification of the Backwashing Filter Bottom Distributor 304 Screen Nozzle


Header pipe
Diameter
50,53,57,60,65,70,75,80,100,125,200,245,300,320,360,400,450,500,550,600mm
Slot
0.1,0.15, 0.2,0.25,0.3,0.5…..15 mm
Length
50~6000mm
Material
Stainless steel or low carbon galvanized steel (LCG)
Connection Flange or screw thread



Backwashing Filter Bottom Distributor 304 Screen NozzleBackwashing Filter Bottom Distributor 304 Screen Nozzle

Production And Sales of Backwashing Filter Bottom Distributor 304 Screen Nozzle


transport
