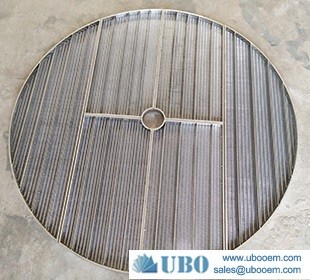

Wedge wire lauter tun screens for brewing tank false bottom

Product Code: 3625
Category:Sieve plate screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of Wedge wire lauter tun screens for brewing tank false bottom


Wedge wire lauter tun screens are used in the craft beer brewing process between the mash tun and the brew kettle.

The lauter tun screen separates the barley husks from the clear liquid wort.

The barley husks provide a natural filter bed (Wedge wire false bottom screen)through which the wort is strained and drains of the lauter tun as a cleautr liquid . Wedge wire screen is the preferred false bottom for lauter tun tanks in many breweries.The brewing tank false bottom screen can be made in sections to fit through any man-way. Typically, the wedge wire false bottom screen has 0.7mm/0.75mm /1mmslot openings to hold back the solids and allow liquid to pass through.

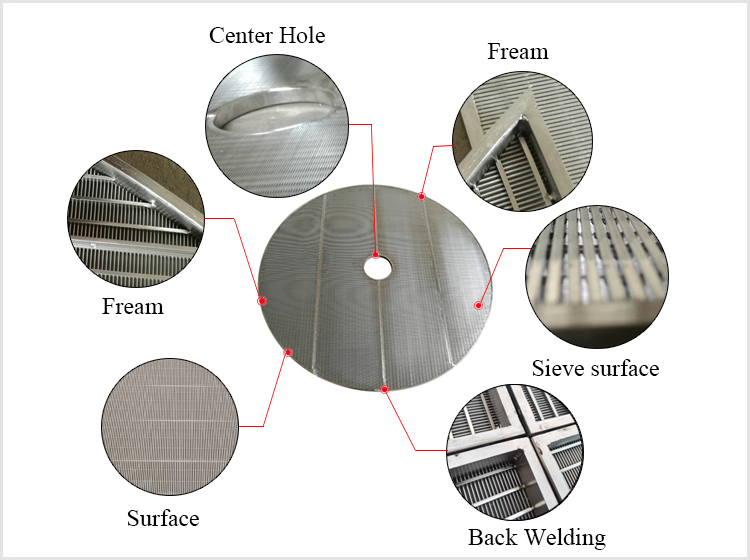

details of Wedge wire lauter tun screens for brewing tank false bottom

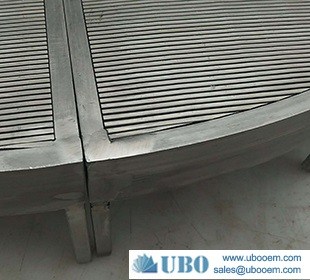

structure of Wedge wire lauter tun screens for brewing tank false bottom

Feature of Wedge wire lauter tun screens for brewing tank false bottom

Excellent separation properties— high resistance to clogging
V-shape provides exceptional open area
Easy to clean, providing reduced maintenance costs
Superior strength, delivering longer service life
Standard slot openings are .028 inchs or .030 inches(other sizes available)
Custom sizes and framing options

Uses of Wedge wire lauter tun screens for brewing tank false bottom

Lauter tun screen
Mash tun screen
False bottom screens
Custom made screens for retro-fit or new installations

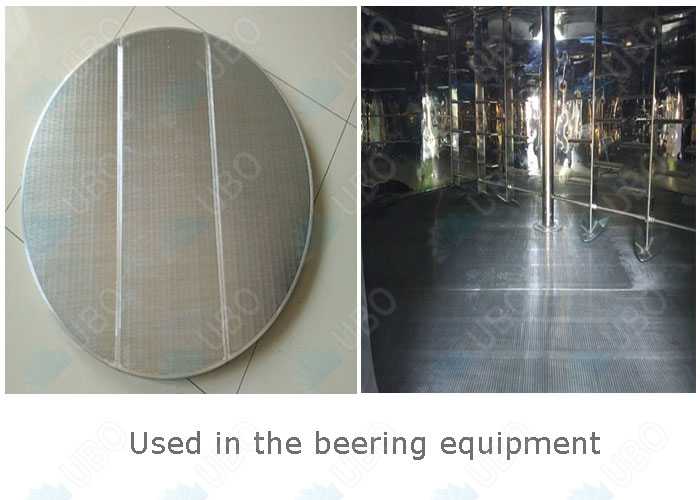

application of Wedge wire lauter tun screens for brewing tank false bottom

Application of Wedge wire lauter tun screens for brewing tank false bottom

Specification of the Wedge wire lauter tun screens for brewing tank false bottom


Wedge wire lauter tun screens for brewing tank false bottom

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29”, 30”, 35”, 37”, 40”, 45”, 47”, 59”, 63”, 74”, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

Production And Sales of Wedge wire lauter tun screens for brewing tank false bottom


transportation of Wedge wire lauter tun screens for brewing tank false bottom
