Pressure wedge wire water filter nozzle strainer for liquid filtration

Product Code: 3410
Category:Water strainer & nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Pressure wedge wire water filter nozzle strainer for liquid filtration


Pressure wedge wire water filter nozzle strainers are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because nozzles are affixed to durable steel plates that can withstand great loads without damage. Using the nozzle method gives you the reliability you want with the flow rate you require.

UBO manufactures nozzles using a variety of materials to ensure long life and reliable performance. The non-plugging, continuous slot design makes UBO nozzles ideal for applications that involve the retention of sand, activated carbon, ion exchange resin and more. They withhold the media while allowing the treated liquid to pass through.
If needed, YOUBIOU (UBO) can also custom manufacture nozzles to your exact specifications, including assembled nozzle.

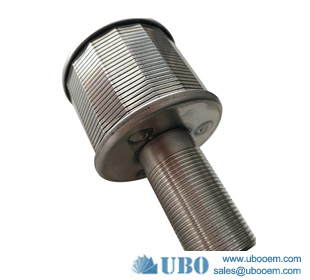

Pressure wedge wire water filter nozzle strainer for liquid filtrationPressure wedge wire water filter nozzle strainer for liquid filtration

Advantages of Pressure wedge wire water filter nozzle strainer for liquid filtration

Excellent roundness
Very good slot width precision
High mechanical load capacity
No form closure connection that would allow vibration of the profiled bars V-shaped wire around the twin tube water cap for metallurgical industry
Automated welding process for high-precision manufacturing
Perfectly adjusted screen basket profiles
Available for all screens
Surface finishing as required

Application of Pressure wedge wire water filter nozzle strainer for liquid filtration

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

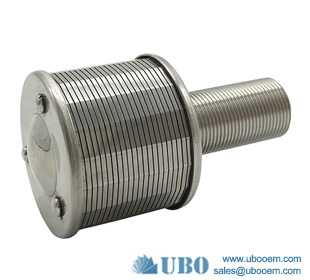

Pressure wedge wire water filter nozzle strainer for liquid filtrationPressure wedge wire water filter nozzle strainer for liquid filtration

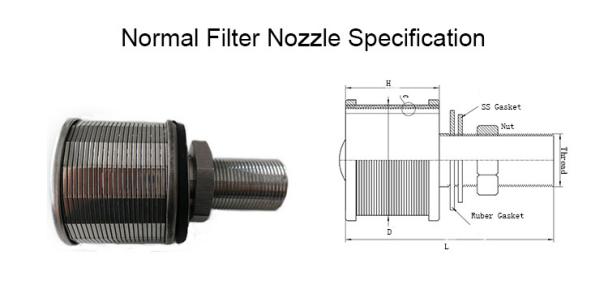

Specification of the Pressure wedge wire water filter nozzle strainer for liquid filtration


Pressure wedge wire water filter nozzle strainer for liquid filtration

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M,NPT, G, PT(BSPT),Z,BSP, request

SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

* All the above size are the normal size. Customized size is possible.

* UBO could help to design according to the application and requirement.

* The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to      actual requirement and application

3. Thread according to requirement
