Description of How to keep water fresh for water nozzle

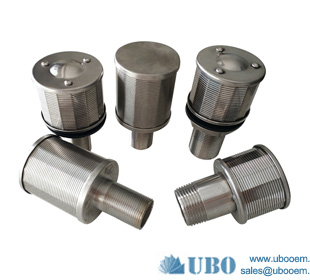

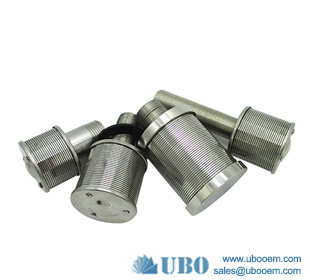

Filter nozzles are used in liquid/solid or gas/solid separation (sand, catalyst, resins, zeolite etc). The design of each nozzle and the exact quantity will be proposed in order to obtain a perfect distribution or collection of flow.
Our filter nozzles are an excellent technical and economical solution in bringing together a fully welded, strong and highly corrosion resistant structure and with a non-plugging surface.

Advantages of Filter Nozzle

1·Type 316L stainless steel construction.
2·Continuous slot design provides increased open area for better collection.
3·Standard nozzles are 2in./51mm diameter and can be attached to the plate either with threaded end fittings or with“L”bolts.
4·Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5·Wedge wire screen is highly resistant to plugging.
6·Choice of either 3/4”NPT or 1”NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7·Less expensive than other screen of equal efficiency.

Usage of Filter Nozzle

used widely in down-flow reactors for liquid/solid or gas/solid separation. The liquid or gas can flow through the nozzles while the solids are retained in the vessel by the nozzles.

The height of a nozzle and the internal diameter of the fitting can be approximated using the following graphs.

Slot entrance velocity nominally 0.2m/s (to be optimised dependant upon the filter media)

By optimising the ratio between the head loss of each component (open area and fitting) we can determine the optimum quantity of nozzles to ensure a perfect distribution or collection without channelling, wall effects, or dead zones.

Filter Nozzle

Announcement:

If you can envision it,We can supply it. TEL:0086-0311-83289301 E-mail:sales@ubooem.com

·          Ubo will do everything possible to provide exact and full product information based on metal mesh for your information.

·          In order to give customer a clear image of the product,Ubo has taken some pictures, customer can dowmload for reference but using our picture for business is forbidden.

·          Due to technique and other factors,product image might be slight different to the products itself,in case everything will follow the products.

Ubo appreciate any suggestion on our product information or picture or anything else.

Specification of the How to keep water fresh for water nozzle


Material:stainless steel

Type:filter nozzle

Thread specification:as your request

filter nozzle

Type

Slot

Dimension

Flow area

D



H

L

M

A

0.25

Φ45

40

90

M20

450m3

A1

0.25

Φ45

40

90

M24

500m3

(flow 0.5T/H)

B

0.25

Φ53

45

100

M24

570m3

(flow 1T/H)

B1

0.25

Φ53

45

100

M32

600m3

(flow 1.5T/H)

B3

0.25

Φ57

55

110

M32

800m3

(flow 2T/H)

C

0.2-0.5

Φ70

45

110

M32

800m3

C1

0.2-0.5

Φ70

55

120

M32

1000m3
