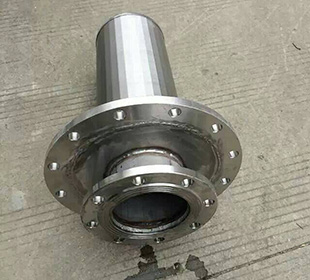

wedge wire Resin Traps for water treatment

Resin traps, also known as media traps, serve as indispensable guardians within water treatment systems, ensuring the containment of ion exchange resin or filtration media to prevent their escape into the equipment. YUBO Filter Factory offers a range of wedge wire Resin traps, providing an economical yet robust solution to safeguard water treatment lines. These traps not only mitigate downstream contamination risks but also act as a safety net, preventing the complete loss of media in case of system failure.

Ion exchange water treatment systems stand as specialized technology pivotal in wastewater treatment, effectively eliminating dissolved ions and contaminants from water. Their pivotal role in enhancing water quality and meeting diverse industrial and domestic needs cannot be overstated.

wedge wire Resin traps for water treatment

The vulnerability of water treatment systems to damage arises from various factors.

Over time, the intricate mechanisms comprising screens, pipes, plates, and devices, designed to retain media within pressure vessels, can succumb to corrosion, chemical erosion, thermal stress, abrupt flow changes, aging, or water hammer effects. When these distribution systems falter, the ion exchange resin or other media can infiltrate the water distribution system, causing contamination and potentially wreaking havoc on downstream components, such as costly RO membranes, pumps, tanks, and associated processes.

Water treatment specialists understand that material carry-over from filters not only results in the loss of valuable filter media but also spells disaster for equipment exposed to contaminated water. Enter trap filters for granular materials – a vital solution in preventing such losses and preserving the integrity of processing lines, especially during emergencies linked to drainage and distribution system failures.

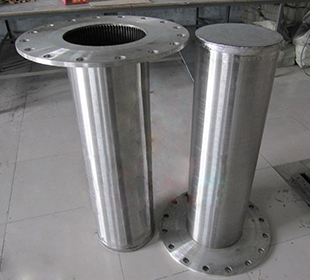

wedge wire screen Resin Traps

These trap filters, meticulously designed to intercept filter medium carry-over due to potential drainage system defects or media abrasion, find application across various water treatment schemes. They are indispensable in mineral processing, thermal and nuclear power plants, industrial and heating boilers, and condensate purification systems.

Advantages of resin traps

The advantages of resin traps are myriad, aligning perfectly with best practices in water treatment systems. By implementing resin traps, the risks of downstream contamination are significantly mitigated. These traps excel in:

1. Preventing mass resin/media loss into piping distribution systems

2. Safeguarding resin during backwashing processes

3. Shielding downstream equipment and pumps from contamination

YUBO's wedge wire Resin traps screens are meticulously crafted from high-quality materials using advanced welding techniques. These screens boast customizable gap sizes, tailored to suit specific resin dimensions. The comprehensive range of resin trap screens or media traps offered by YUBO caters to a wide spectrum of applications. These traps seamlessly integrate into product water lines across various water treatment equipment, including Softeners, Dealkalizers, Condensate Polishers, Demineralizers, Carbon Filters, Sand Filters, Portable DI Tanks, Greensand Filters, and Multi-Media Filters.

Inquire US

For inquiries regarding pricing or further information, please reach out to our business department via email at Kindly provide detailed requirements when contacting us, enabling us to furnish you with an accurate quotation promptly.
