Wedge wire  products has the following advantages:

General

Wedge wire is a welded steel structure, mainly used for filtration, separation and retention media.

It consists of surface profiles, usually V-shaped, that are resistance welded onto support profiles. The distance between the surface profiles is controlled very accurately, as it forms the slot through which the filtrate flows.

In case of V-shaped surface profiles conical slots are created (as shown on figure).

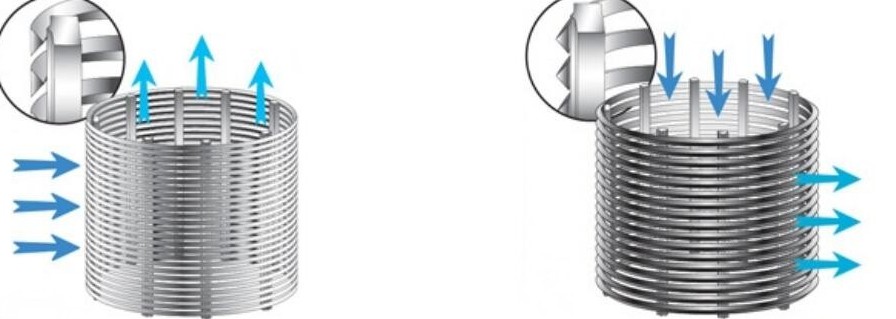

Filtrations Direction

The direction of the flow is determined by the position of the surface profiles in relation to the support profiles. Wedge wire screens are either flow-out-to-in (FOTI) or flow-in-to-out (FITO)

Advantages

Wedge wire has the following advantages:

Non-clogging: the continuous slot formed by the V-shaped surface wires ensures a two-point contact between the particles and the slot, which minimizes clogging.

High-precision slot sizes: slot sizes are available to meet customer´s requirements.

Surface filtration: the V-shaped surface wires allow easy cleaning by mechanical scraping or back flushing.

Low pressure-drop

Strong construction: for most applications, the wedge wire screen is self-supporting, because of the welding at each intersection.

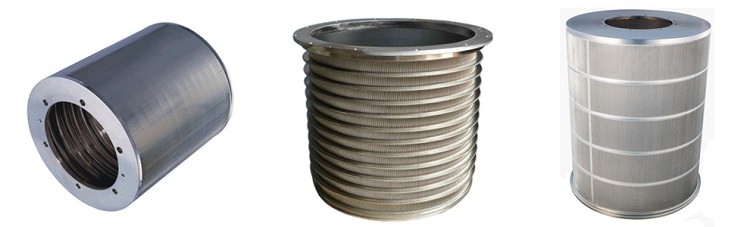

the types of wedge wire pipe:

With 10+ years' experience in wedge wire screen products and mesh products and filter elements, UBO supplied high quality goods to our customer worldwide. All products can be customized according to customer need.

UBO is dedicated in providing all our customers with customized products in high quality at competitive price to save customers' cost and energy. We have professional engineering and customer support team to work with customers together.
