hydraulic series hydraulic oil filter cartridge for Coal Machine,DBT,JOY,KAMAT,RMI

Product Code: 3000
Category:Water Strainer & Nozzle
Material:stainless steel
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Author: Maria
Email:sales@ubooem.com

Description of hydraulic series hydraulic oil filter cartridge for Coal Machine,DBT,JOY,KAMAT,RMI


Wedge wire water strainer&nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle. Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

Characteristics of hydraulic series hydraulic oil filter cartridge for Coal Machine,DBT,JOY,KAMAT,RMI

1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.

Application of hydraulic series hydraulic oil filter cartridge for Coal Machine,DBT,JOY,KAMAT,RMI

Widely used in water softening treatment equipment, replace Polypropylene ( PP ) filter;sand filters, carbon filters, ion exchange systems, carbon absorbers,media retention, backwash retention, resin retention and resin traps.

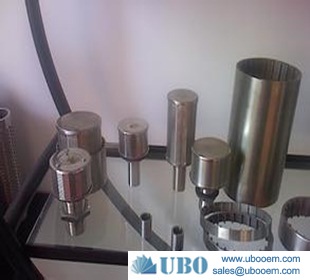

wedge wire screen nozzle

Specification of the hydraulic series hydraulic oil filter cartridge for Coal Machine,DBT,JOY,KAMAT,RMI

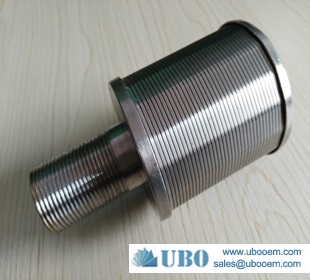

wedge wire screen nozzle

No.

Type

Ton

Slot

Opening

Size

0.2-0.25mm slot opening Area of through-flow mm2 (reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

Production And Sales of hydraulic series hydraulic oil filter cartridge for Coal Machine,DBT,JOY,KAMAT,RMI


wedge wire screen nozzle
