Screen Internals for Catalytic Reactors

Product Code: 2380
Category:Sieve Plate Screen
Material:Stainless steel
Properties:wedge wire screen
Application:Filtration

Email to Us Start Order


Author: Jane
Email:sales@ubooem.com

Description of Screen Internals for Catalytic Reactors

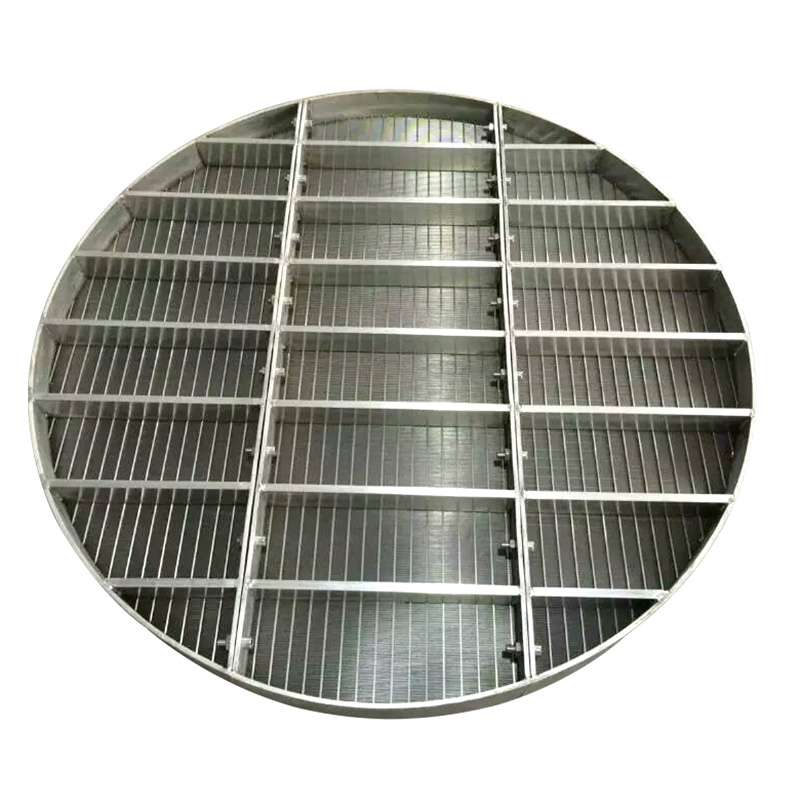

Screen Internals for Catalytic Reactors

UBO's Welded Wedge Wire Screens provide a unique combination of the most important features required for maximum screening efficiency. The product is custom designed to suit the specific requirements of the customer to enable a relatively low cost and high performance solution for the screening application. The high open area of the Wedge Wire screen provides excellent capacity.

Applications of Wedge Wire Screen


1) Liquid/Solids Separation

Solids removal from process wastewater

Lake and riverwater intake screens

Fiber removal

Screen cylinders for rotary screens

Recovering solids

Pulp thickening

Heavy media recovery

Product dewatering

Sieve Bend Screen surfaces


2) Sizing, Straining and Filtering

In-line strainers to minimize the lose of media

Resin Traps used as an effluent strainer

Sizing of solids

Pressure screens

Filtering particles from treated fluid

Strainers for pump or compressor protection


3) Collection

Support grids for uniform fluid collection in media filter

Hub lateral screen systems

Header lateral screen systems

Collection of treated liquid in treatment vessels

Filter nozzles for tube sheets

Upflow Clarifiers

Gravity filter underdrain systems


4) Retention

Retaining media and collecting the treated liquid

Carbon retention screens in carbon-in-pulp tanks

Flooring for germination, malt kiln, grain drying rooms

Catalyst retention in catalytic reactors



Fish protection / diversion screens


Specification of the Screen Internals for Catalytic Reactors


Specification (Profile wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30

Specification (support rods):

Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm

Note: other wires and rods available upon request

Slot Size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length

Lengths up to 6 meters.

Diameter

ranging from 25mm to 800mm.

End Connection

Plain beveled ends for butt welding or threaded

Other sizes available on request .Deep well construction specifications available on question.

Production And Sales of Screen Internals for Catalytic Reactors


Package: in wood case.

Delivery Time: 5-25 days.
