Wire Cone Strainers

Product Code: 1647
Category:Cone Filter&Strainer
Material:Stainless Steel wire mesh
Properties:stainless steel filter
Application:Filtration,fuel Filter,Hydraulic Filter

Email to Us Start Order


Email:sales@ubooem.com

Description of Wire Cone Strainers


The benefit of cone filters is acid and alkali-resistance, high temperature resistance, wear resistance, strong stress resistance.

Wire Cone Strainers are very low cost pipeline strainers that are designed for start-up of new or revamped piping systems. They offer inexpensive protection for costly valves, pumps, meters, and other mechanical equipment against damage  causing  contamination present during start-up and commissioning. They  are for temporary use and should be removed and thrown away after the initial cleaning of the system. Since these strainers are temporary, they need to be installed in a section of pipe such as a removable spool piece.

Construction:Stainless Steel (SS 304 & SS 316)

Performance of Wire Cone Strainers

1.Gas filter , simple technology, good air permeability,

2.No leakage,good reproducibility , quick recovery rate

3.Convenient installation, high efficient , long working time

Features of Wire Cone Strainers

Easy to clean,.Its material of surface is easy to clean,and especially suitable for backwashing.
Great high temperatute resistance,it can work normallyunder high temperature(Under 480 degree)
Filteration can be customized.
Alkali and acid resistance.Its material is stainless steel,it processes the performance of acid and alkali resistance.

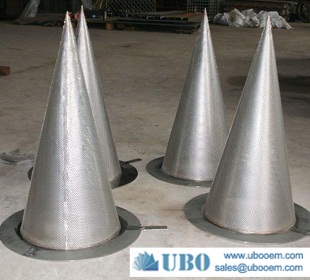

Wire Cone Strainers

Specification of the Wire Cone Strainers




NOM. SIZE

10

12

14

16

18

20

24

OD

150

13 1/8

15 7/8

17 1/2

20

21 3/8

23 5/8

28

300

13 1/8

15 7/8

17 1/2

20

21 3/8

23 5/8

25

600

15 1/8

17 3/8

19 1/8

22

13 7/8

26 5/8

30 7/8

ID

9

10 7/8

12 5/8

14 1/2

16 3/8

18 3/8

22 3/8

H

21

25

26

29 1/2

33

37

44

L

14

16 1/2

17

19

21

24

28

NOSE

3

3

4

4

6

6

10

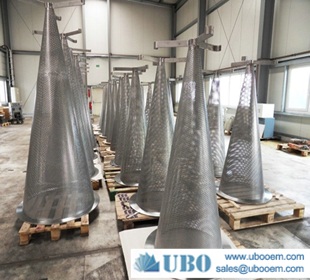

Production And Sales of Wire Cone Strainers


Packaging Details: Cone Wire Mesh Strainers are packed with cartons and outside with wooden pallets or wooden cases.
