choose right filter nozzle

What is a water treatment filter nozzle?

A water treatment filter nozzle or distributor serves as a vital component in filtration systems, preventing filtering or purifying granular media from escaping the tank or vessel. Its specialized structure allows for a higher capacity of filter media compared to traditional slotted or perforated tubes.

Often referred to as a "filter," this mesh-like element is designed not primarily for filtration but for securely retaining granular filter media or purifying agents within the container. It is commonly manufactured using materials such as stainless steel, PVC plastic, ABS, or Kynar.

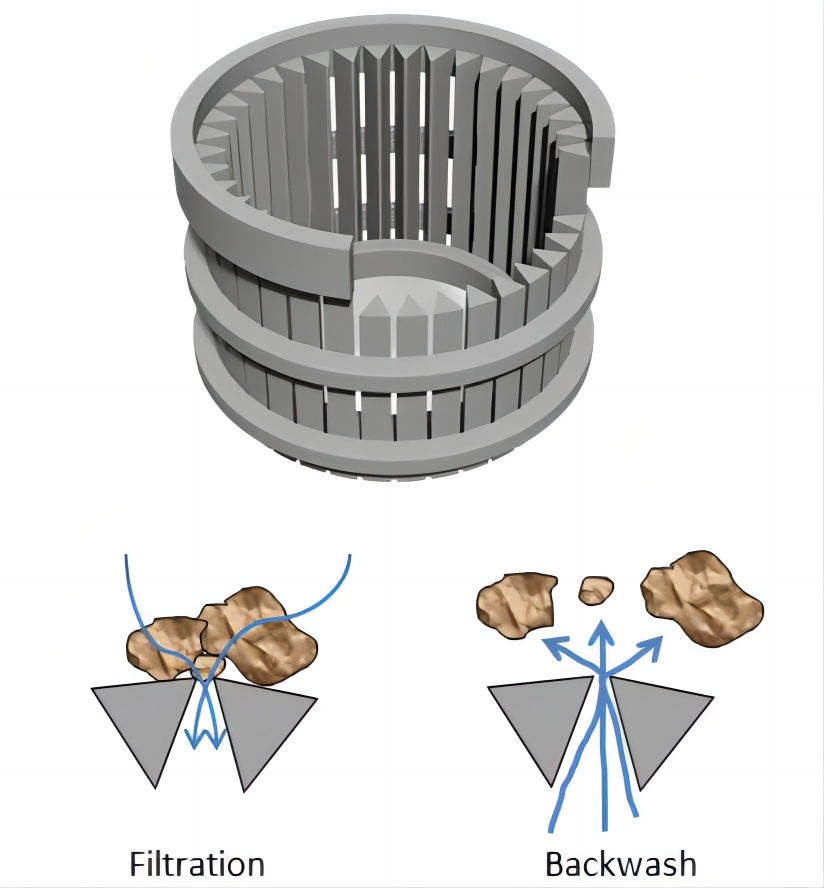

The nozzle features a unique mesh or slotted design, typically composed of robust V-shaped profiles mounted on various support profiles. These V-shaped wires are meticulously arranged in a circular pattern with precise millimetric gaps between them, forming a continuous groove known as the filtration zone or slotted element.

Advantages and Disadvantages of Nozzles or Distributors:

When contemplating the applications and advantages of using nozzles, consider the following benefits:

Non-Clogging: Nozzles prevent clogging or blockage that can occur with conventional screens or filters. The carefully designed slot configuration minimizes the risk of clogging by grains, ensuring effective flow and efficient operation. This reduces downtime and maintenance costs due to filter plugging.

Easy Cleaning: The V-shaped wire design facilitates straightforward cleaning or backwashing of the filter media.

Material Selection: Depending on factors like temperature and chemical compatibility, appropriate materials such as polypropylene or stainless steel can be chosen for construction.

Versatile Slot Widths: Nozzles come with various screen slot widths, catering to a range of filtration needs. The choice of slot width is critical to achieving optimal results.

For instance, YUBO recommends stainless steel wedge wire nozzles for robust performance in demanding applications.

The selection of the correct slot width is essential: smaller slots are suitable for fine media like ion exchange resin, while larger slots are better for materials like GAC absorbers.

Incorporating nozzles into a filtration system is a pivotal decision due to their unmatched advantages. However, selecting the right nozzle demands attention to multiple factors. These include the slot size, connection diameter, sufficient nozzle count for desired flow, and material compatibility. To simplify this process, consider sourcing nozzles from a reputable manufacturer.

Elevate your filtration system with high-quality nozzles that ensure efficient operations and optimal media retention. Explore our range of meticulously designed products to enhance your filtration processes. Your success is our priority, and we're here to provide the ideal nozzle solution for your unique requirements.
