Wedge wire screen types

2022-09-07Tags:Wedge Wire Screen Types,Posted By zhaozhao

A wedge wire filter refers to a welded steel structure in the filtration, separation, and retention of a particular fluid.

Wedge wire, or as it's sometimes referred to, profile bar, is primarily used in the manufacture of screens.

wedge wire filter

Normally, the distance between a surface profile and another forms the slot which acts as the filtration zone.

The V-shaped surface profile is usually for conical slots for filtration.

wedge wire screen

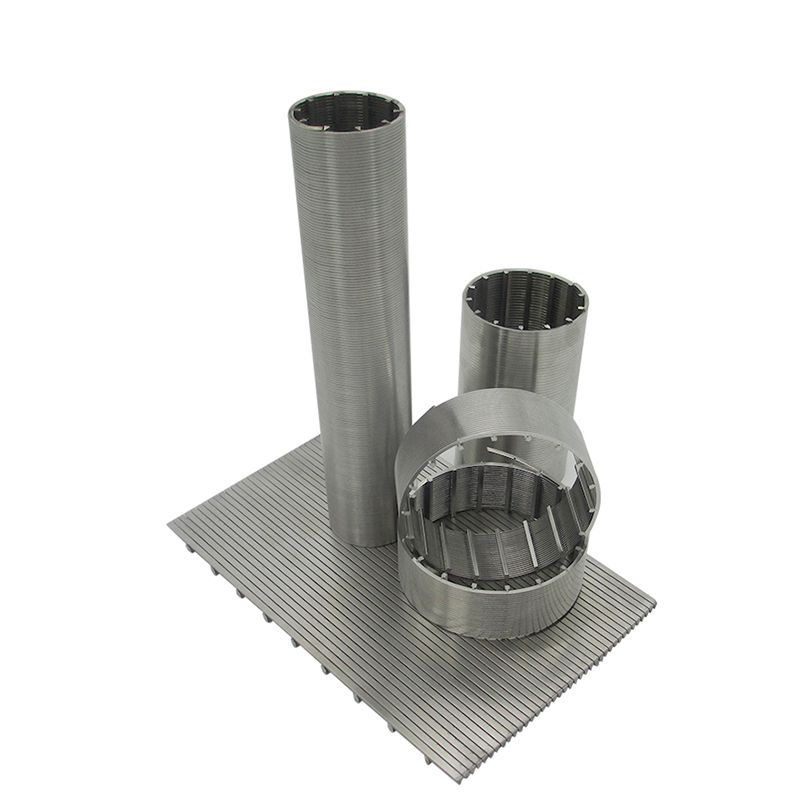

You need to know that there are two types of wedge wire filters: flat screen and screen filter tube.

wedge wire filter types

Wedge wire performs extremely well in applications requiring accuracy as well as strength. As a result, it's used for many different industry,such as coal mine, water treatment, wastewater treatment, paper pulp, chemical, oil, etc.


So you can contact our company (  to custom the wedge wire filter if you are interested in wedge wire filtration.
