Header Laterals Filter System


2022-08-08Tags:wedge wire screen header laterals filter system,Posted By zhaozhao

For the treatment of process water such as in ‘Ion Exchange’ and in the process of removing organic matter, YUBO Filtrer factory offers products such as the Header and Hub-Lateral Systems to uniformly collect and distribute process flow.


Header laterals promote even distribution while also avoiding flow/pressure concentrations. Each header lateral consists of a series of screen laterals connected to a central header to provide uniform flow within a vessel containing treatment media.

Header laterals can be used to either distribute inflow or collect flow, depending on their location within a vessel.

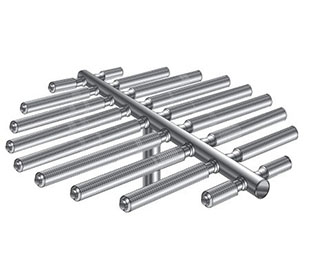

Header laterals system

We build header laterals to your specifications for material (stainless steel options or alloys), wire and rod size and open area to accommodate your media retention and flow rate requirements.

And Wedge wire lateral assemblies are a typical screen type used in the under draining with the features of effective filtering and screening performance.

So we provide the wedge wire screen header laterals filter system.

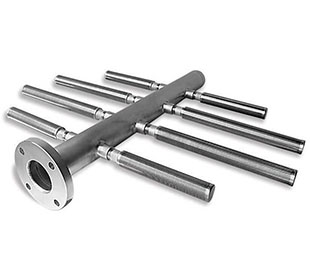

wedge wire screen header laterals filter system

The wedge wire screen lateral system has two types: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of solid cap on one end and a flange. The different design make it possible to suit different applications and machines.

Of course , we can custom the header laterals filter as your requirements or drawing.

NO.

(MM)TYPE

OD

(MM)

ID

(MM)

SUPPORT WIRE NUMBER

FILTER DIRECTION

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO
