Wedge wrapped wire screen basket cylinder for solid -liquid separation

Product Code: 3570
Category:Wedge wire Screen cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Basket
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of Wedge wrapped wire screen basket cylinder for solid -liquid separation


Wedge wrapped wire screen basket cylinders are made in panel or cylinder type from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals.

Wedge wrapped wire screen basket cylinder offer a perfectly cylinder and smooth surface with openings.This kind of wedge wire can replace traditional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen.

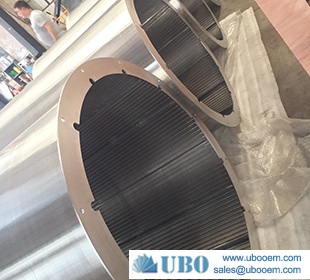

Wedge wrapped wire screen basket cylinder for solid -liquid separation

Features of Wedge wrapped wire screen basket cylinder for solid -liquid separation

Self Supporting;
High Abrasion resistance;
Low pressure drop;
High resistance to Vibration.

Applications of Wedge wrapped wire screen basket cylinder for solid -liquid separation

Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.

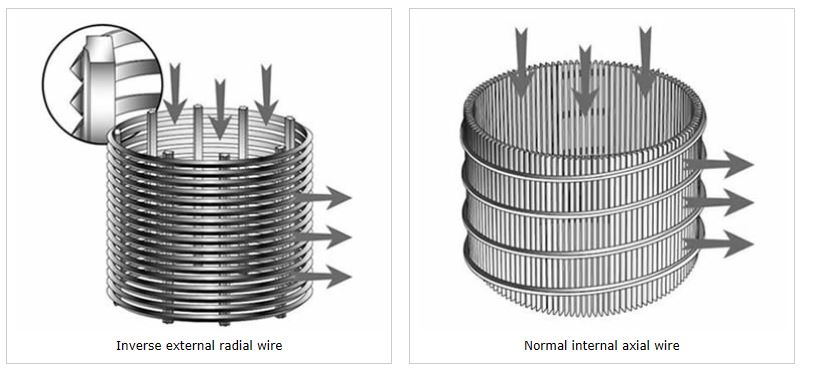

Wedge wrapped wire screen basket cylinder for solid -liquid separation

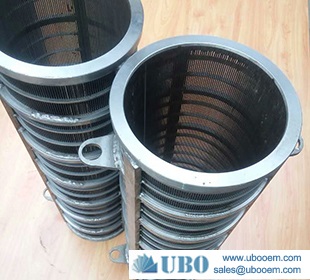

Wedge wrapped wire screen basket cylinder for solid -liquid separation

Specification of the Wedge wrapped wire screen basket cylinder for solid -liquid separation


Wedge wrapped wire screen basket cylinder for solid -liquid separation

Wedge Wire Screen Cylinders Basket
Material: Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging from 1 inch -----45 inch.
Length: lengths up to 6 meters.
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Flange: according to your request
