Wedge Wire water filter screen pipe with wedge v wire screen

Product Code: 3545
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:water strainer&nozzle
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire water filter screen pipe with wedge v wire screen


Wedge Wire water filter screen pipe with wedge v wire screen is made by a v or wedge profile wire around an internal array of longitudinal support rods. Each intersecting point of these wire is fusion welded to form a precise and uniform mesh. Wedgewire profile screen combines superior weld strengths with accurate slots tolerances resulting in a reliable sand control screen applied in well drilling industries. Our stainless steel well screen offers stable structure and good strength, can withstand the pressure and corrosion during the downhole well completion and operation.


Wedge Wire water filter screen pipe with wedge v wire screen



Features of Wedge Wire water filter screen pipe with wedge v wire screen



-- High mechanical strength can bear large pressure drop

-- Equal slots for filtering can form equally distributed filter cake

-- The wedge type slot can improve back flushing and regeration performance

-- It has resistant to pressure temperature aging corrusion can be applied for different kinds of fluid.



Applications of Wedge Wire water filter screen pipe with wedge v wire screen



The continuous-slot well screen strainer is recommended in the following situations:

-- Formation comprised of small or fine particles

-- Water wells where gravel packs will be installed

-- Thin aquifers, where maximum open area is required

-- Small diameter wells

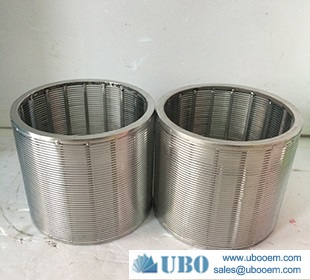

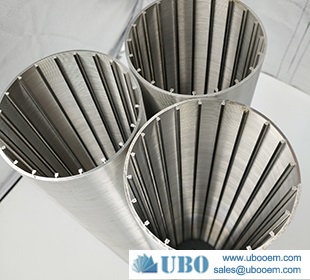

Wedge Wire water filter screen pipe with wedge v wire screenWedge Wire water filter screen pipe with wedge v wire screenWedge Wire water filter screen pipe with wedge v wire screen

Specification of the Wedge Wire water filter screen pipe with wedge v wire screen



Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Heigh(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Heigh(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material: stainless steel (304,316 etc.) or carbon steel
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings

Production And Sales of Wedge Wire water filter screen pipe with wedge v wire screen


Package: in wood case.

Delivery: 15-30days.
