Flat type Stainless steel Wedge wire screen panel

Product Code: 3341
Category:Sieve plate screen
Material:stainless steel 302,304,316,316L
Properties:wedge wire screen
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Flat type Stainless steel Wedge wire screen panel


Flat type Stainless steel Wedge wire screen panel  is used of a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Flat panels can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applications.

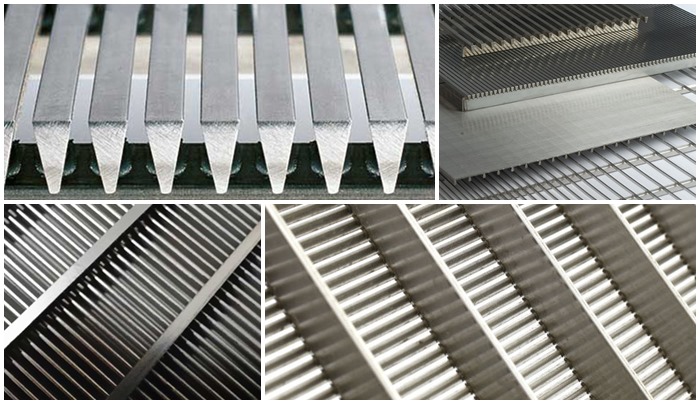

Flat type Stainless steel Wedge wire screen panel

Application of Flat type Stainless steel Wedge wire screen panel

The flat panel screens are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

Characteristic of Flat type Stainless steel Wedge wire screen panel

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

Advantages of Flat type Stainless steel Wedge wire screen panel


A continuous slot opening which significantly increases the available open area, thus providing a greater access to the water bearing zone.
A 'V' shaped wedge wire which avoids clogging and ensures uninterrupted flow.
A uniform and efficient well development due to the continuous slot opening.
Offering great strength. precision, long service life.

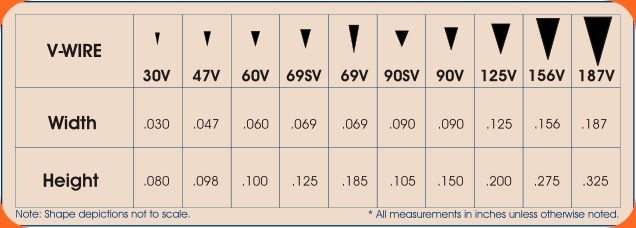

Specification of the Flat type Stainless steel Wedge wire screen panel


Flat type Stainless steel Wedge wire screen panel

Flat type Stainless steel Wedge wire screen panel

Production And Sales of Flat type Stainless steel Wedge wire screen panel


Flat type Stainless steel Wedge wire screen panel
