Wedge Wire Hub and Header Lateral


Wedge Wire Hub and Header Lateral for Draining Filtration


Wedge wire screen is widely used in under-draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in draining.

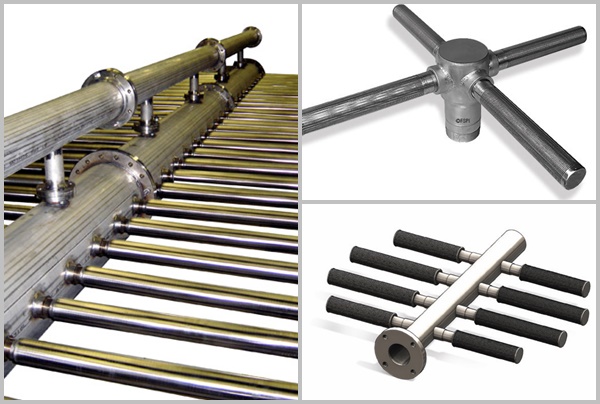

Wedge wire lateral assemblies, also called Wedge Wire Hub and Header Laterals, are assemblies of horizontal herring bone style wedge wire screen laterals and vertically secured round hubs. The screen lateral has an inherent even pattern, which is made of stainless steel, Hastelloy alloy steel, and other alloy steels. The screen lateral has various slot sizes, wire sizes,s and diameters to suit common or customized applications.

Wedge Wire Hub and Header Lateral for Draining Filtration



The Wedge Wire Hub and Header Laterals have two types: threaded ending wedge wire screen lateral and flange ending wedge wire screen lateral. Threaded ending wedge wire screen laterals are composed of a solid cap on one end and a threaded pipe connection on the other end. The flange ending wedge wire screen lateral is composed of a solid cap on one end and a flange. The different designs make it possible to suit different applications and machines.


Because of the different endings of the wedge wire screen lateral, the connection type is different. Commonly the wedge wire screen laterals are installed onto the vertical hub by a thread. Sometimes, the screen laterals are bolted onto the round hub through flanges on the screen laterals and round hubs.


Sometimes, the threaded ending wedge wire screen laterals are installed onto a hub with flanges. And the flanges are connected to the vertical hub flange by the bolts and nuts. The flange can be the top flange or the bottom flange. All the designs are used to suit different positions and requirements of the machine.


SPECIFICATION OF LATERAL ASSEMBLIES

Material: stainless steel, Hastelloy steel, or other alloy steel.

Assemblies end type: threaded type or flange type.

Slot size, Screen lateral diameter, and Vertical hub diameter can be customed as your requirements

 Please contact YUBO if you want to know more about the wedge wire screen filters.
