The difference between filters


2021-02-04Tags:Basket Filter, Wire mesh cone filter, SS filter element,OEM,Posted By zhaozhao

Do you know the difference between Y-type filter, T-type filter, porous filter basket filter, porous filter basket filter, wire mesh cone filter?
Y-type filter:
The Y-type filter is installed on the pipeline to remove solid particles in the fluid, so that the mechanical equipment (including compressors, pumps, meters, etc.) can work and operate normally, stabilize the process and ensure safe production. When the liquid enters the filter tube with a certain size, the hopper is blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is required, only the movable filter tube is taken out and the device can be reset after treatment.
T-type filter:
The T-type filter is a small device that can remove a small amount of solid particles from liquid or gas and protect the device from working properly. The filter can be installed in a direct current line or a corner line. When the fluid enters the filter tube with a certain size, the impurities are blocked, and the clean filtrate is discharged from the filter outlet. When cleaning is required, only the movable filter tube is taken out and the device can be reinstalled after treatment.
Porous basket filter:
The porous filter basket is installed on the oil or other liquid pipelines to remove solids in the fluid and stabilize the operation of the machine (including compressors, pumps, pressure gauges, etc.). Its filtration area is about 35 times the cross-sectional area of ??the inlet and outlet (large cylinders can also be used, with small cylinder diameters, the multiplier will be higher), far exceeding the filtration area of ??y-type and t-type filters.

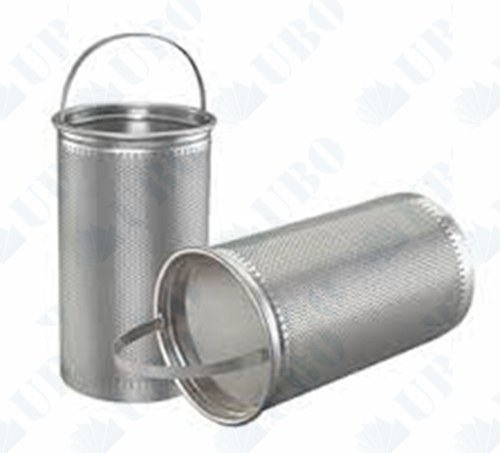

Porous basket filter
Basket filter: The perforated filter basket filter is mainly composed of tubes, tubes, baskets, flanges, flange covers and fasteners. When the liquid enters the filter basket through the cylinder, the solid impurities are blocked by the filter basket, and The cleaning fluid is eliminated through the filter basket and filter outlet. When cleaning is needed, unscrew the screw plug at the bottom of the main pipe, drain the fluid, remove the flange cover, and then lift the filter element for cleaning.

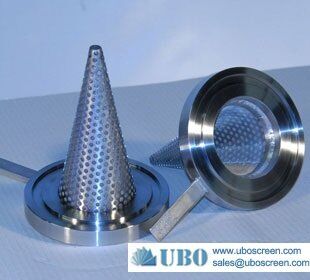

Wire mesh cone filter
Also known as wire mesh filter, it is mainly made of steel ring, perforated plate and wire mesh welding. It is usually clamped by two flanges, or it can be made into flange connection. It can remove a large amount of solid impurities in the fluid, so that machines and equipment (including compressors, pumps, instruments, etc.) can work and run normally, achieve a stable process, and ensure safe production. When the fluid enters the temporary filter with specific specifications, the hopper is blocked, and the clean filtrate can pass through the filter and enter the downstream pipeline. When cleaning is required, the filter should be removed from the pipeline for cleaning. After cleaning, the filter can be reinstalled for reuse.
