wedge wire for flow Distribution

Product Code: 3638
Category:Header-Lateral
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to Us Start Order


Author: Eva
Email:sales@ubooem.com

Description of wedge wire for flow Distribution


Wedge wire lateral assemblies is widely used in the under draining applications with the features of effective filtering and screening performance. Wedge wire lateral assemblies are a typical screen type used in the under draining.
Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has inherent even pattern, which is made of stainless steel, hastelloy alloy steel and other alloy steels. The screen lateral has various slot size, wire size and diameters to suit common or customized applications.

Application for wedge wire for flow Distribution:

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

Advantage for wedge wire for flow Distribution:

·Continuous slot opening significantly increases the available open area, thus providing greater access to the water bearing zone.
· A “V”shaped profile wire avoids clogging and ensures an uninterrupted flow.
· V-wire welded screens have a robust structure and large open area, as well as accurate slot dimension.
· V-wire welded water well screens have the features of easy backwashing, long service life, high safety and reliability and competitive price.

Traditional laterals for wedge wire for flow Distribution:

With the advantage of the wrap wire screens pipe,large flow area, uniform water distribution, high mechanical strength,temperature resistance, pressure resistance, aging resistance,corrosion resistance have been greatly improved. Even if the branch pipe bending occurs, the resin still can’t flow out.Stainless steel wire slot size can be designed according to the resin size.

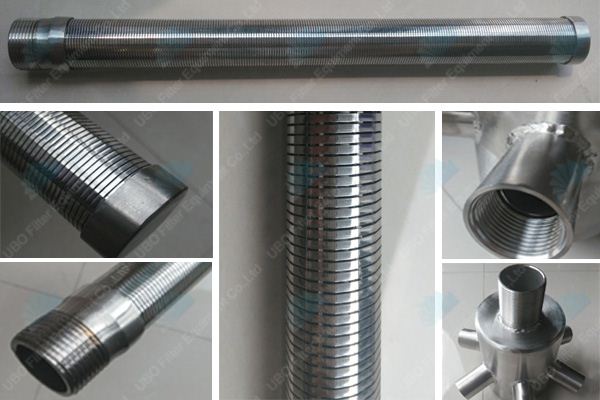

detail parts of wedge wire for flow Distribution

Specification of the wedge wire for flow Distribution


  (mm)TYPE OD
(mm)
ID
(mm)
Support wire Number Filter direction
1 SRD 40 40 31 8/10 FOTI/FITO
2 SRD 45 45 36 10/12 FOTI/FITO
3 SRD 48 48 38 12 FOTI/FITO
4 SRD 60 60 51 12 FOTI/FITO
5 SRD 70 70 61 12/18 FOTI/FITO
6 SRD 85 85 76 18 FOTI/FITO
7 SRD 110 110 101 24 FOTI/FITO
8 SRD120 120 111 24 FOTI/FITO

Production And Sales of wedge wire for flow Distribution


transportation of wedge wire for flow Distribution
