T Type Temporary Strainers

Product Code: 2081
Category:Basket Filters
Material:Stainless steel 316
Properties:basket filter
Application:Filtration

Email to Us Start Order


Author: summer
Email:sales@ubooem.com

Description of T Type Temporary Strainers


T Type Temporary Strainers is made of Sintered 5-layer or multi-layer stainless steel wire mesh laminates, it take the advantages of good permeability, high holding dirty capacity, large filter area, long service life, high temperature resistance and corrosion resistance, and cleanable, can be used for many times, it is widely applied in the filtration system of petroleum and chemical industry.

T Type Temporary Strainers
T Type Temporary Strainers Main Connection:
1.Standard(e.g.222, 220, 226)
2.Fast interface
3.Thread
4.Flange
5.Tie rod
6.Special customization

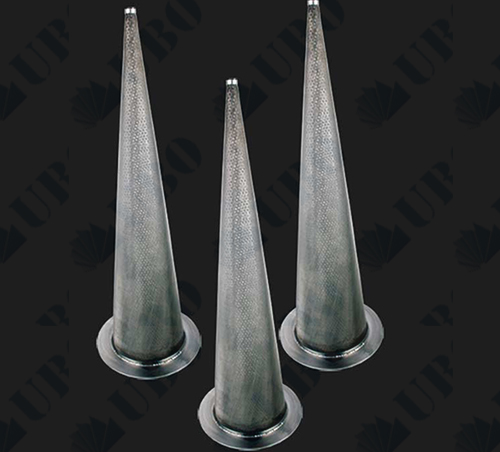

Stainless steel sintered mesh Cone filter Details:
1.Material: SUS 304,316L
2.Rate:1-300um
3. Working temperature:-200-600°C

T Type Temporary Strainers is composed of 5-layer or multi-layer stainless steel wire mesh, which is special canlendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity. Its interlaced mesh forms a uniform and ideal filtration structure. As a new filter material, it not only overcomes the disadvantages of ordinary metal mesh, such as lower strength, poor rigidity, unstable hole shapes, but has excellent performances such as high precision and strength,efficient flow restriction, mechanical and resistance to abrasion,heat by reasonably arranging its porosity, permeability and strength. Therefore, its total performance has obviously advantages than sintered powder, ceramic, fiber cloth, other filter material.
Our T Type Temporary Strainers has been widely used in many industries such as aerospace, aviation, petroleum, chemical, metallurgy, purification, gas-solid, liquid-solid, and gas-liquid separation cooling, gas distribution, fluidization bed, gas sampling collection, shock reducing, sound attenuation, inflaming retarding.
Main applications:
1.Distribution and cooling material in high temperature;
2.Material used for gas distribution and fluidization bed;
3.Material requiring high precision, stable performance in high temperature;
4.High pressure backwashed oil filter;
5-layer Sintered Wire Mesh Laminate Date Detail

Specification of the T Type Temporary Strainers


· Heavy Machined Flange (with O-Ring) for seal between strainer basket and strainer housing.
· 14 ga. (0.078” thick) perforated sheet with ¼” dia. holes, 3/8” staggered centers, 40% Open Area is our ‘standard’. The Perforated Strainer Basket can be supplied with any size hole and perforated pattern required.
· All SaniClean Basket Strainers are built to accept industry standard Filter Bags. Filter Bags are available in different materials, types of weaves, and ranging in retention rate from 1 – 1500 microns. (See page 10).
· Shown with Filter Bag Hold Down Ring
· Shown with Quick Release Handle.

Production And Sales of T Type Temporary Strainers


T Type Temporary StrainersT Type Temporary Strainers
