wire wedged screens pipes

Product Code: 3236
Category:Wedge wire Screen cylinders
Material:stainless steel
Properties:wire wedged screens pipes
Application:water treatment ,oilfield,mining,water well,food,industry,filtration

Email to US Start Order


Author: Maria
Email:sales@ubooem.com

Description of wire wedged screens pipes


The wire wedged screens pipes is known as profile wire screen, V- wire screen, and wedge wire screen. It is created by wrapping a V- shaped profile wire cylindrical around longitudinal placed support rods. Each intersection of the profiles wire and support rod is well welded. It has a smooth surface, resistant to clogging and a greater structural strength. Welded wedge wire screen is the most advanced product of modern technology used in many industries for screening, filtration, dewatering, drying and cleaning. The numerous combinations of profile wires and support rods, and the wide range of apertures between the wires and rods allows us to design a screen according your required specification.

Features of wire wedged screens pipes



1.Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.

Applications of wire wedged screens pipes

Architecture & Construction
Food & Beverage Screens
Mineral & Aggregate Processing
OEM Screen Components
Pulp & Paper Screens
Refining & Petrochemical
Water Process & Fluid Treatment
Water Well

wire wedged screens pipes

Specification of the wire wedged screens pipes


1.Material:SS304,304L,316,316L,galvanized iron wire.

2.Slot size:0.25-10mm

3.Wedge wire width:1-3.7mm

4.Out diameter:25-600mm

5.Connect way:Welded

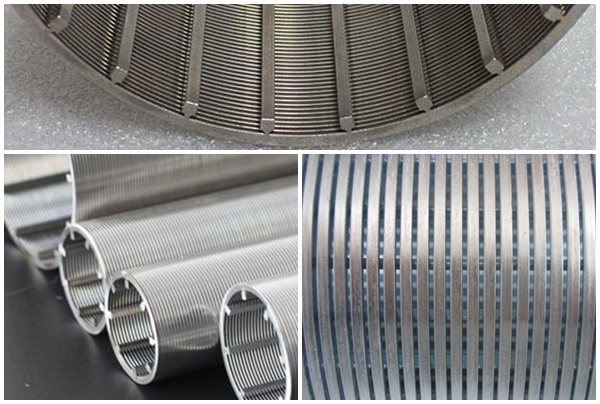

6.  stainless steel Wedge wire screen pipe detailed picture

size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

wire wedged screens pipes



Production And Sales of wire wedged screens pipes


transportation
