| Category: | Water Strainer & Nozzle |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request |
| Properties: | filter nozzle |
| Application: | solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater |

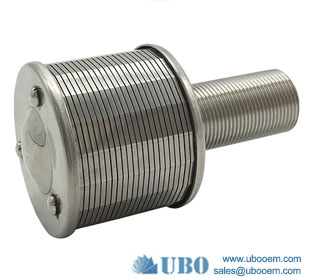

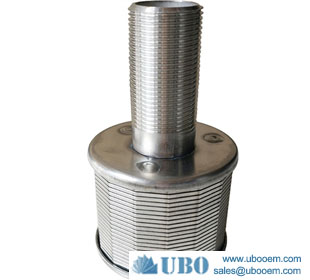

Stainiess steel strainer nozzle is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.
The stainless steel wedge wire 316L water screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.
Small systems may be built moduarly from off-the-shelf components requiring minimal customization.
1) Type 316L stainless steel construction.
2) Continuous slot design provide large circulation area
3) Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4) Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5) Wedge wire screen is highly resistant to plugging.
6) Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7) Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.
|
|
|||||||
|
Type |
Slot (mm) |
Dimension |
Flow Rating (M3/H) |
||||
|
D(mm) |
H(MM) |
L(MM) |
Thread |
Fittings |
|||
|
UBO-0.5 |
0.25 |
45 |
45 |
90/request |
M,NPT, G, PT(BSPT),Z,BSP, request |
SS Gasket, Rubber gasket, Nut, request |
0.5 |
|
UBO-1.0 |
0.25 |
53 |
45 |
90/request |
1.0 |
||
|
UBO-1.5 |
0.25 |
57 |
45 |
90/request |
1.5 |
||
|
UBO-2.0 |
0.25 |
57 |
55 |
100/request |
2.0 |
||
|
UBO-2.5 |
0.25 |
70 |
55 |
100/request |
2.5 |
||
|
UBO-3.0 |
0.25 |
70 |
70 |
120/request |
3.0 |
||
|
Note |
* All the above size are the normal size. Customized size is possible. * UBO could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement |
||||||
