stainless steel wedge wire header lateral

Product Code: 3354
Category:Header-Lateral
Material:stainless steel 302,304,316,316L
Properties:Profile screen laterals
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of stainless steel wedge wire header lateral


Stainless steel lateral arm, mainly used in water input device, resin sprayer fittings, water distributor, center distribution drainage device, screen lateral systems.

These assemblies consist of a series of screen laterals connected to either a central header pipe or a hub. They are designed for effective media retention in a wide range of applications, including ion exchangers, clay and sand filtration applications, and carbon towers.

stainless steel wedge wire header lateral

Features of stainless steel wedge wire header lateral

Lateral spacing, length, diameter and slot opening sizes are based on individual system needs: slot size 0.002 in. (0.05 mm) and up in
increments of 0.0004 in. (0.01 mm) and diameter from 0.787 in. (20 mm) up
Assemblies are typically made with type 304SS, 316LSS, or other exotic alloys
Connections of the laterals can be threaded fittings, couplings or flanges

Application of stainless steel wedge wire header lateral

hub and header lateral screen consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

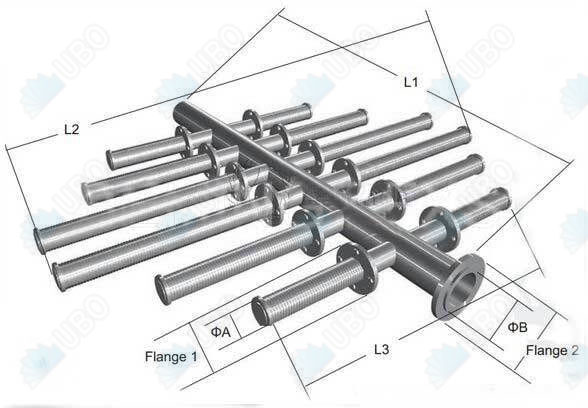

Specification of the stainless steel wedge wire header lateral


stainless steel wedge wire header lateral

Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150

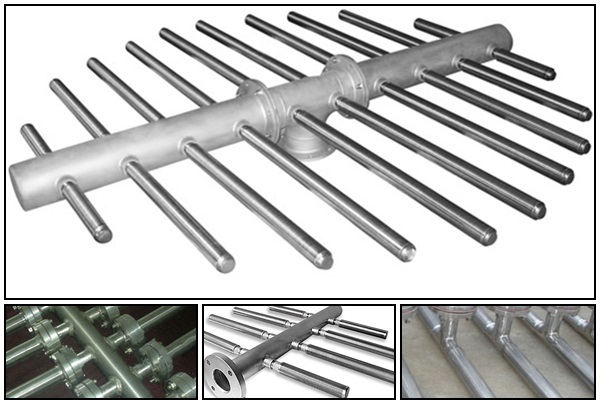

Production And Sales of stainless steel wedge wire header lateral


stainless steel wedge wire header lateral
