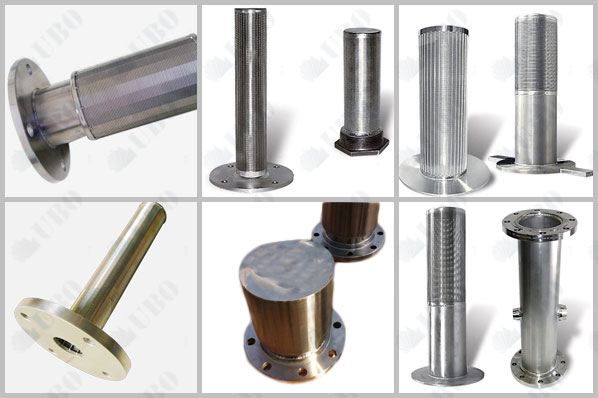

stainless steel resin trap

Product Code: 3607
Category:Header-Lateral
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:Resin Traps
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of stainless steel resin trap


Stainless steel resin traps are placed in a housing, inline with the flow to capture expensive media from traveling downstream. We can design the traps to capture media particles of any size. With the continuous open slot, the traps provide sufficient open area to let process flow move smoothly thus minimizing pressure loss through the system.
Your resin trap can be designed to suit either new or existing strainer bodies.

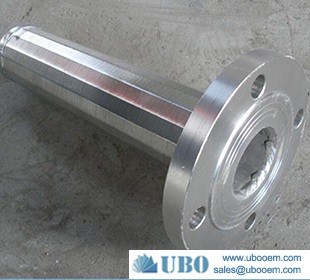

stainless steel resin trap


The Profile Wire Screen element included with the main housing as depicted below eliminates the migration and loss of expensive resin/media, whilst at the same time protecting your pumping equipment. A combination of different Profile Wire sizes and slot openings can be used depending on your circumstances. Completion Products will also determine the effective screen open area in order to improve upon efficiency and minimise the pressure drop.

Features of stainless steel resin trap

•Reduced costs, since wedge wire screens have a very long life.
•Greater resistance to stresses of different pressure and temperature.
•Maximum effective flow area & operating efficiency is maintained.
•Costly downtime for cleaning plugged screens is minimize.

Application of stainless steel resin trap

water treatment, resin traps, oilfield, mining, food industry, chemical industry, paper making industry, decoration.

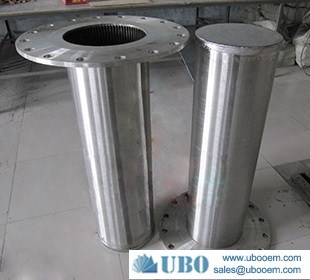

stainless steel resin trap

Specification of the stainless steel resin trap




Type Slots mm ΦA ΦB L1mm L2mm
AM 0.05, 0.1,   0.2,   0.3,   0.5,    1.0 G2" Φ50 30,55 73, 126, 180, 231, 284, 338, 389
G1 1/2" Φ38 30,55
G2" 1 1/4"NPT 30
G2" 1 1/2"NPT 30
Φ68 G2" 30
1 1/2"NPT 1 1/4"NPT 30
2 1/2" Φ60 20
