screen plate.wedge wire screen,plate,Vee wire

screen plate

Product Code: 3144
Category:Sieve plate screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to US Start Order


Author: summer
Email:sales@ubooem.com

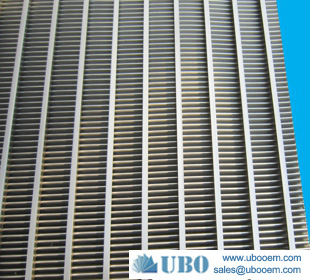

Description of screen plate


Screen plate are used in a wide variety of processes across several industry sectors. We use state-of-the-art manufacturing techniques that place our products at the cutting edge of wedge wire screen construction. Flat panels can be designed and manufactured according to customer specifications and come in a wide range of grades - from fine gap screens for small particle sizes to heavy duty screens for heavy load applicationsscreen plate

Application for screen plate:

The flat panel screens are used in chemical industry, sieving of petroleum, pharmaceutics, metallurgy and coal, food and beverage, also can be used in filtration of water treatment. Flat welded screens are the most popular mining screen due to its strength.

Characteristic for screen plate:

1.) Wedge wire screen style isn't easy to be locked
2.) Due to the different pressure between inside from outside,it could be very easily to clean the plugging material.
3.) We are eager for long-terms cooperative parters ,our factory promise the best quality to have a high filtering accuracy, high strengh and durability
4.) We have the most advanced equipments and the most professional workers , so totally could be as per customer's drawing to produce new styles .

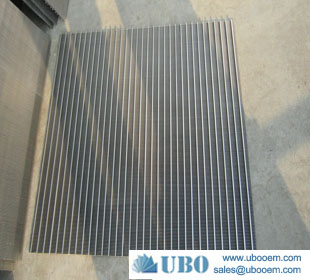

Specification of the screen plate


screen plate

V-Wire Wrap Water Well Screen
Material:
Low carton, low carton galvanized steel (LCG), steel treated with plastic spraying, stainless steel (304,316etc.)
Wedge Wire (mm):
Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm):
Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Diameter ranging
from 1 inch -----45 inch.
Length:
lengths up to 6 meters.
Slot size:
0.10, 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Production And Sales of screen plate


screen plate
