deep arch looped wedge wire

Product Code: 1844
Category:Wedge Wire Screen Cylinders
Material:Stainless Steel
Properties:Wedge Wire Screen
Application:Filtration

Email to Us Start Order


Email:sales@ubooem.com

Description of deep arch looped wedge wire


deep arch looped wedge wire is composed of rod strips and V shaped wires through manufacturing on specialized welding machine.
The rib strips and V shaped wires will be welded by resistance welding, has enough welding strength, equally slot gap, high corrosion resistance, large filter area, good permeability, simple structure

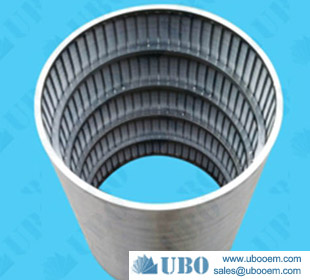

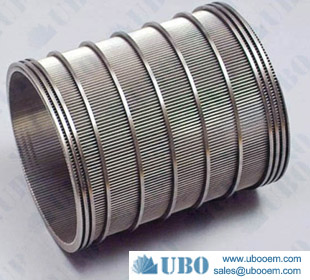

deep arch looped wedge wire

Uses for deep arch looped wedge wire:

The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

Characteristics for deep arch looped wedge wire:

The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

Advantages for deep arch looped wedge wire:

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Specification of the deep arch looped wedge wire


Size
(inch)
O.D
(mm)
Slot
(inch)
Collapse Strength
(Psi)
Tensile Weight
(Ton)
Wrap(thick*deep)
(mm)
Rods
(mm)
4 117 0.04 395 6 2.2*3.0 3.8mm/22
4 114.3 0.04 395 6 2.3*3.0 3.8mm/22
6 168.3 0.04 252 8 2.3*3.5 3.8mm/32
8 219.1 0.01 399 10.5 3.0*5.0 3.8mm/48
8 219.1 0.02 370 10.5 3.0*5.0 3.8mm/48
8 219.1 0.04 323 10.5 3.0*5.0 3.8mm/48
10 273.1 0.01 206 11 3.0*5.0 3.8mm/50
10 273.1 0.02 191 11 3.0*5.0 3.8mm/50
10 273.1 0.04 167 11 3.0*5.0 3.8mm/50

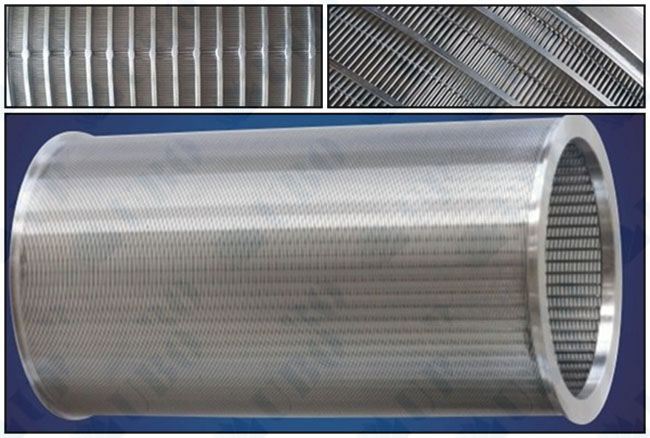

Production And Sales of deep arch looped wedge wire


    deep arch looped wedge wiredeep arch looped wedge wire
