Wedge wire screen stainless steel filter nozzles filter strainer industrial

Product Code: 3361
Category:Water strainer & nozzle
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:filter nozzle
Application:water filtration,liquid filtration,industry filtration

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge wire screen stainless steel filter nozzles filter strainer industrial


  The wedge wire screen nozzles. Nozzles are closed on one side and have a threaded fitting on the other. The screen nozzle with thread coupling can be fixed on the filtering equipment for the filteration of water petrol resin and other medium.One rubber shim , one steel shim and two thin nuts of the same material for a nozzle.

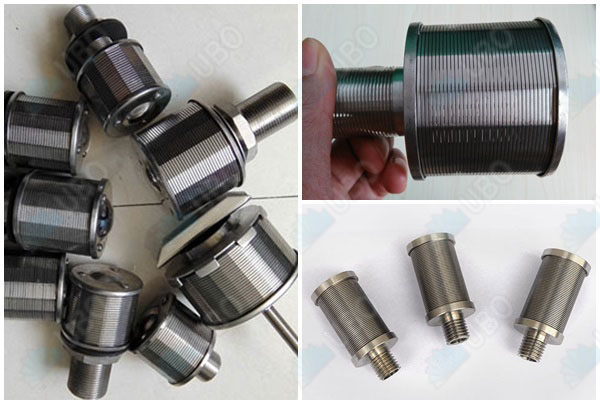

Wedge wire screen stainless steel filter nozzles filter strainer industrial

Features for Wedge wire screen stainless steel filter nozzles filter strainer industrial

1. Type 316L stainless steel construction.
2. Continuous slot design provide large circulation area
3. Standard nozzle are 2in/51mm diameter and can be attached to the plate either with threaded end fittings or "L" blots.
4. Standard slot opening is typically range between 0.006”(0.15mm), and 0.020in./0.50mm wide suitable for 40 to 50 mesh size media, Other slot sizes are also available.
5. Wedge wire screen is highly resistant to plugging.
6. Choice of either 3/4” NPT or 1” NPT fittings are available from stock. Other styles, such as tee-bolt mountings, and drop tubes are readily available.
7. Unaffected by temperature, corrosion resistant, aging resistant, long life span, easy change, saftey and enviormental friendly.

Application for Wedge wire screen stainless steel filter nozzles filter strainer industrial

The wedge wire screen filter nozzle can be fixed on the filtering equipment for the filteration of water petrol resin and other medium. Also it can be used in the water treatment, water softhening, conversion of sea water into fresh water, the filter of food chemistry.

Specification of the Wedge wire screen stainless steel filter nozzles filter strainer industrial


Stainless steel screen tube filter nozzle

Type

Slot

(mm)

Dimension

Flow Rating

(M3/H)

D(mm)

H(MM)

L(MM)

Thread

Fittings

UBO-0.5

0.25

45

45

90/request

M, NPT, G, PT, Z,

request



SS Gasket,

Rubber gasket,

Nut, request

0.5

UBO-1.0

0.25

53

45

90/request

1.0

UBO-1.5

0.25

57

45

90/request

1.5

UBO-2.0

0.25

57

55

100/request

2.0

UBO-2.5

0.25

70

55

100/request

2.5

UBO-3.0

0.25

70

70

120/request

3.0

Note

All the above size are the normal size. Customized size is possible.

UBO could help to design according to the application and requirement.

The nozzles customized range as below:

1. Slot range: 0.05-2mm

2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application

3.Thread, gasket, nut according to requirement

Production And Sales of Wedge wire screen stainless steel filter nozzles filter strainer industrial
