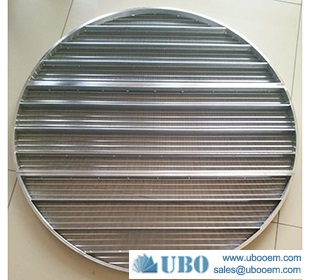

Wedge wire screen false bottom for lauter tuns

Product Code: 3553
Category:Water strainer & nozzle
Material:stainless steel 304,304L,316,316L,321,430 or as per your request.
Properties:lauter tun screen
Application:beer brewing, food procesing

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of Wedge wire screen false bottom for lauter tuns


Wedge wire screen is the preferred false bottom for lauter tun tanks in many breweries. The Wedge wire screen false bottom can be made in sections to fit through any man-way. Typically, the wedge wire false bottom screen has .030" slot openings to hold back the solids and allow liquid to pass through.

Example of Wedge wire screen false bottom for lauter tuns description:
59 3/4" OD made in 4 sections
2*4mm wedgewire and 3*5mm support rods and 3*15 bearing rod
0.75mm nominal slot openings
3/16" x 1" banding around each section
all 304 stainless steel



Application of Wedge wire screen false bottom for lauter tuns



Mash filtration bottom used in the lauter tuns in breweries. On the mash hot water is applied to create the wort. The false bottom consists out of segments, which can pas through the manhole. The V-shaped (wedge wire) solution has a larger open area then the conventional milled plate fals

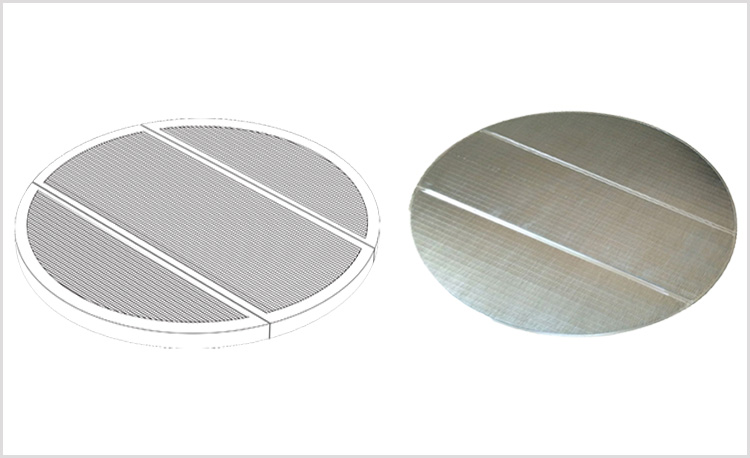

wedge wire screen false bottom

Feature of Wedge wire screen false bottom for lauter tuns



• Excellent separation properties— high
resistance to clogging
• V-shape provides exceptional open area
• Easy to clean, providing reduced
maintenance costs
• Superior strength, delivering longer
service life
• Standard slot openings are .028” or .030”
(other sizes available)
• Custom sizes and framing options

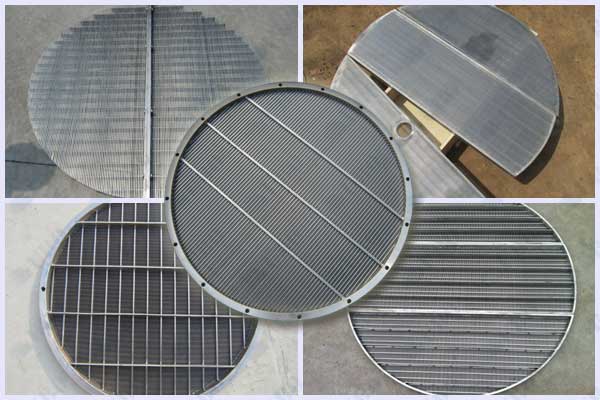

wedge wire screen false bottom

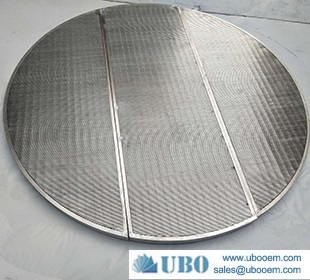

Wedge wire screen false bottom for lauter tuns



Specification of the Wedge wire screen false bottom for lauter tuns


Wedge wire screen false bottom for lauter tuns

Normal Name

Lauter Tun Screen, Mash Tun Screen, False Bottom Screen, Etc.

Diameter Range

(MM)

200mm To 2500mm. Diameter Customized

Normal Diameter

(MM)

29, 30, 35, 37, 40, 45, 47, 59, 63, 74, Etc

Normal Slot

(MM)

0.7mm, 0.75mm, 0.8mm, 1.0mm, customized

Normal Thickness (MM)

8.5mm, 20mm. 25mm, 30mm, 40mm, 50mm, Customized.



Sections & shape

1 Cycle, 2 PCS, 3 PCS, 4 PCS, 6 PCS, 8 PCS. Customized

Wedge wire

(MM)

2x4MM Wedge Wire, 3x5MM Wedge Wire

Support Rod

 (MM)

3x5MM V shaped Support Rod, 3x5mm Square Support Rod

Strengthen Rod

(MM)

Thickness and Height according to the diameter and screen thickness

Note

Usually customized.

Production And Sales of Wedge wire screen false bottom for lauter tuns


Wedge wire screen false bottom for lauter tuns
