Wedge wire screen curved sieve screen plate stainless steel

Product Code: 3367
Category:Sieve Bend screen
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:sieve bend screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge wire screen curved sieve screen plate stainless steel


UBO Screens wedge wire screen curved sieve screen plate can be used in a variety of applications ranging from classifying to recovering usable products that would end up in sewer lines to capturing solids from effluents. A continuous slot screen sieve bend gives you a great amount of open area, is significantly more affordable and requires less maintenance than vibrating or rotary drum options.

UBO Screens can manufacture sieve bends to your specifications, including construction materials and sizes. We can also design to your flow-rate requirement.

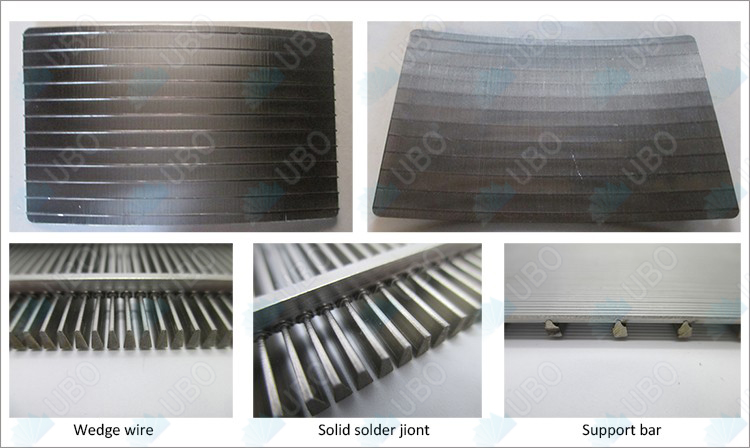

Wedge wire screen curved sieve screen plate stainless steel

Application of Wedge wire screen curved sieve screen plate stainless steel

They are used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc. Sieve bend screens are also used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load. Widely used for fiber removal in Starch industry.

Features of Wedge wire screen curved sieve screen plate stainless steel

Low Headroom - only 1.1 metres (44") tall for the 900 mm arc length unit.
Energy Efficient - operates with no moving parts and with no energy input.
Space Efficient - treats up to 122 litres per second per square metre of floor space.
Quiet Operation - no moving parts means no mechanical or electrical vibrations.
Accurate Sizing - can be used for sizing solid particles down to 0.2 mm (0.008").
Low Maintenance - the profile wire screen resists clogging by near-size particles, and the all-stainless steel construction ensures a long, corrosion-free installation.
Easy Screen Replacement - a typical screen can be replaced in 10 minutes with no tools.

Specification of the Wedge wire screen curved sieve screen plate stainless steel

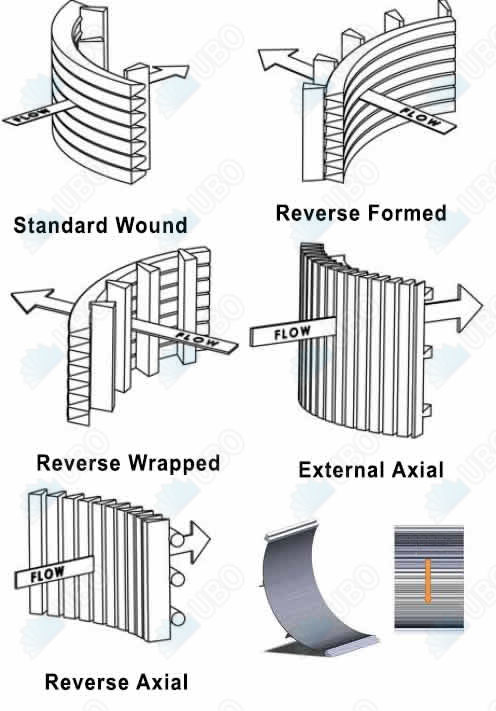

Wedge wire screen curved sieve screen plate stainless steel

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

120º

End connection

Plain beveled ends, flanged or threaded couplings

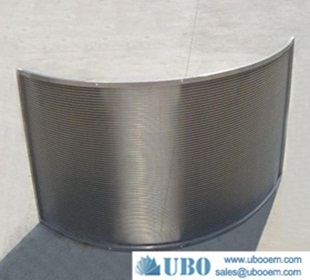

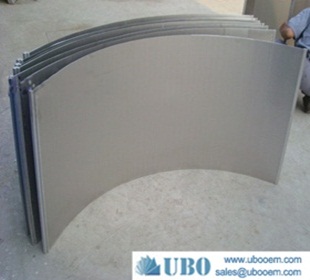

Production And Sales of Wedge wire screen curved sieve screen plate stainless steel
