Wedge wire cross flow sieve bend screen custom products

Product Code: 3349
Category:Sieve Bend screen
Material:stainless steel 302,304,316,316L
Properties:sieve bend screen
Application:solid-liquid separation and recovery. Especially for beer waste water, papermaking wastewater, slaughtering waste water, juice processing wastewater

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge wire cross flow sieve bend screen custom products

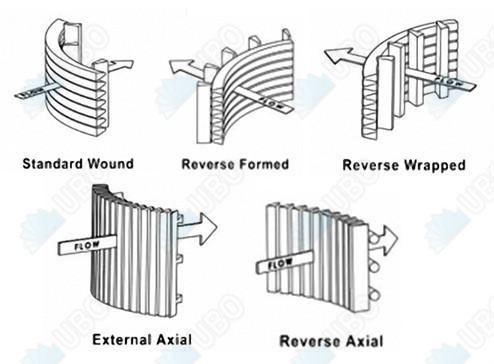

 A sieve bend consists of a concave curved profile wire screen mounted in a frame with the screen openings perpendicular to the flow. A curved screen has greater capacity than a flat screen due to forces exerted as material flows against the curved surface

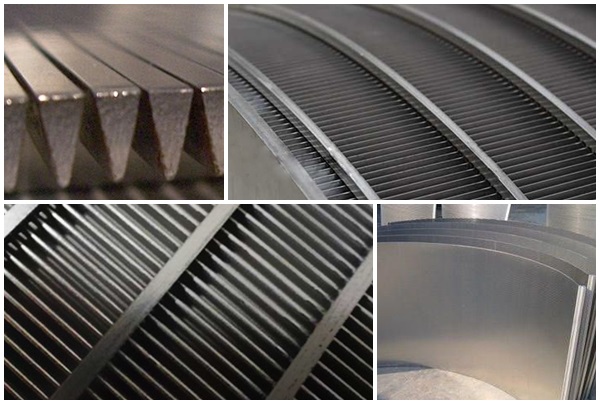

Wedge wire cross flow sieve bend screen custom products

Used for wedge wire cross flow sieve bend screen custom products:

The uses are sewage treatment, laundry wash water clean-up, poultry, fish, fruit and vegetable wastewater processing, minerals processing, coal preparation, paper production, textile plants, and many more

Feature for wedge wire cross flow sieve bend screen custom products:

Low Headroom.
Energy And Space Efficient .
Corrosion Resistance.
Quiet Operation.
Accurate Sizing
Low Maintenance
Easy Screen Replacement
Long Using Life.

Chracteristic for wedge wire cross flow sieve bend screen custom products:

High mechanical strength
High wear resistance
High impact resistance
Larger open area
Self-supporting structure
Non-plugging slot design
Lower operation and maintenance cost

Specification of the Wedge wire cross flow sieve bend screen custom products


Wedge wire cross flow sieve bend screen custom products

Specification (wedge wire):

Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Width

from 25mm to 1200mm.

Radian

15º  30º   60º  120º and as your special request
