Wedge v wire filter nozzle screen strainer

Product Code: 3356
Category:Water strainer & nozzle
Material:stainless steel 302,304,316,316L
Properties:filter nozzle
Application:water, oil, liquid filtration, industry filtration.etc

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Wedge v wire filter nozzle screen strainer


Wedge v wire filter nozzle screen strainer is composed of V-profile wire stainless steel which is spirally wrapped in certain equal slot. To maintain the slot size around inside and add extra strength are mounted. It has each cover for both ends of nozzle.Each wire and rod are made by spot welding. and fitting pipe is adjusted according to the thickness of set bottom plate.Nozzle is completed by welding fitting pipe to a cover of down end after setting screw according to the type of nut.

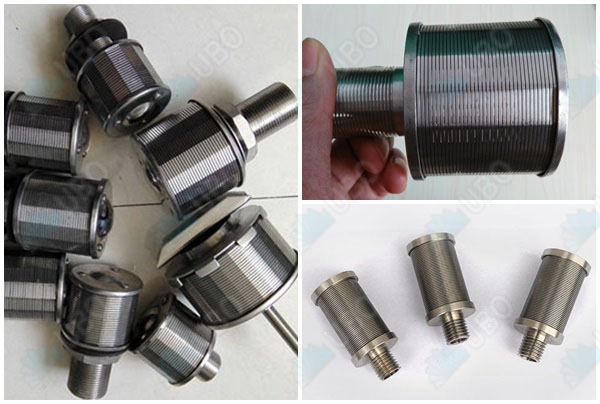

Wedge v wire filter nozzle screen strainer

Application of Wedge v wire filter nozzle screen strainer

Nozzles can be used for liquid/solid or gas/solid separation, or media retention (sand, catalyst, resin).The nozzles are mounted on a support plate. The dimensions and the distribution of the nozzles on the support plate can be altered to obtain an optimized flow distribution.

Feature of Wedge v wire filter nozzle screen strainer

High strength;
Good resistance to abrasion and corrosion;
High rigidity;
Good in filtration and fluidity;
Flat panel surface;
Fairly well precision and roundness;
Long work time;
Easy to clean and back wash;
Uniform gap.

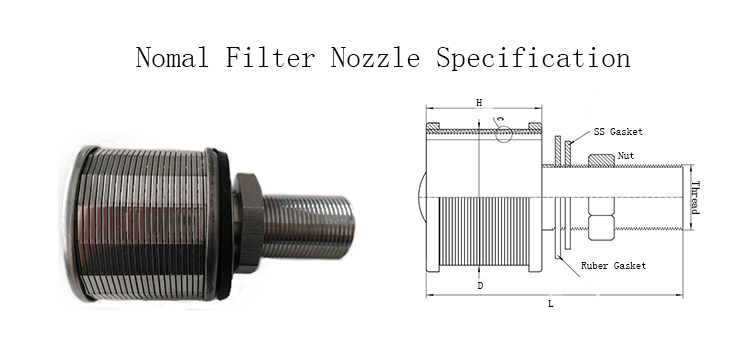

Specification of the Wedge v wire filter nozzle screen strainer


Wedge v wire filter nozzle screen strainer

No.

Slot

Dimension

Flow area/mm2 (Slot: 0.2mm)

D

H

L

M

L1

1

0.2-0.5

45

30

180

25

According to custom's request

330

2

45

40

190

25

450

3

53

40

190

30

500

4

53

50

200

30

630

5

53

40

235

32

500

6

57

40

190

32

605

7

57

50

200

32

750
