Wedge Wire Screens For Liquid / Solids Separation

Product Code: 3126
Category:Wedge Wire Screen Cylinders
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment, water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to Us Start Order


Email:sales@ubooem.com

Description of Wedge Wire Screens For Liquid / Solids Separation


Wedge Wire Screens For Liquid / Solids Separation are made up of rods and wire. The rod can be round wire, triangular wire or trapezoid wire. The wire is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screens have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.

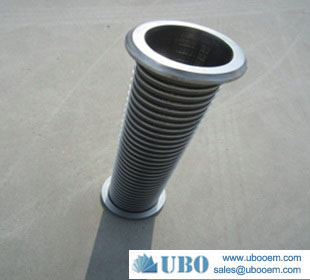

Wedge Wire Screens For Liquid / Solids Separation



Applications for Wedge Wire Screens For Liquid / Solids Separation:



Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.



Advantages for Wedge Wire Screens For Liquid / Solids Separation:



• High mechanical strength to withstand greater pressure difference.

• The homogeneous filtration gap forms a relatively homogeneous cake to facilitate backwash regeneration.

• Wedged gap can improve backwash regeneration capacity.

• Pressure, temperature, aging and corrosion—resistant, suitable for all kinds of fluids.

• Metal wedged wire mesh is adopted as and has the advantages, such as, high mechanical strength, high g reater pressure difference, easy cleaning, and regeneration. Al most two—dimensional filter mesh have no par— ticle packing dead space, the wedged gap can gather energy when backwashing, with good resuIt.

Specification of the Wedge Wire Screens For Liquid / Solids Separation



Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70  Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00

Specification (support rod):

Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

galvanized low carton (LCG), stainless steel (304,316 etc.)

Length

up to 6 meters.

Diameter

from 25mm to 1200mm.

End connection

Plain beveled ends, flanged or threaded couplings

Production And Sales of Wedge Wire Screens For Liquid / Solids Separation

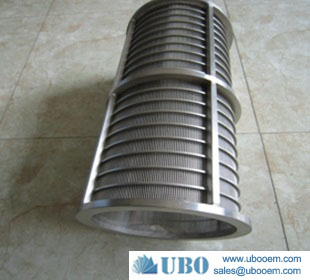

Wedge Wire Screens For Liquid / Solids Separation
