Wedge Wire Distributors

Product Code: 3154
Category:Header-Lateral
Material:Stainless Steel
Properties:wedge wire screen
Application:Filtration,Water treatment

Email to US Start Order


Author: Maria
Email:sales@ubooem.com

Description of Wedge Wire Distributors


Wedge wire distributor systems may have multiple tiers of wedge wire screen laterals.
Wedge wire distributors are available for larger diameter filters. Wedge wire screen laterals make excellent collectors. A perforated pipe distributor can be added to improve back--wash distribution and increase strength.

Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside for flow from outside to inside. Or they can be positioned axially on the inside of the cylinder for flow from inside to outside.

Economical wedge wire screen nozzles can be used as collectors in false bottom (tube sheet) vessel installations.

Wedge Wire Distributors

Features of Wedge Wire Distributors

UBO technology can also make several kinds of lateral collector / center distribution deainage device: Crossing type,fish bone lateral type and straight type.the characterics of our center distibution drainage device:bigger circulation area,Water distribution uniformity.High mechanical strength.Thermal enduance.Resistance to pressure,Anti-aging,Resistance to corrosion.The size for slot can be decided by the size of resin.

Application of Wedge Wire Distributors

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

        Wedge Wire Distributors

UBO is specialized in producing and distributing filter, filter element,polymeric filter,filter strainer,wedge wire screen etc.Welcome to contact us for more information and cooperation. Call: 0086-0311-83289301

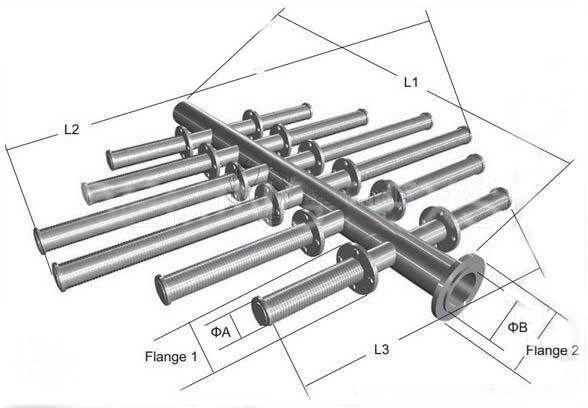

Specification of the Wedge Wire Distributors


Type
Slots
ФA
ФB
L1
L2
L3
Pipe no
Flange1 DN
Flange2 DN
Length L
99,127,157,
199,224,254,
284,326,351,
538,508,607,
635,665,707,
792,834,861,
889,919,
1016,1046,
1088
AME
0.05
0.1
0.2
0.3
0.5
1
32
40
57
76
89
76
89
108
133
159
219
1100
1280
1500
1700
1800
2000
2500
3200
420
480
600
680
720
1100
1280
1500
1700
1800
6
8
10
12
25
32
40
50
65
80
50
65
80
100
125
150



Wedge Wire Distributors

Also special specification could be customized
