Wedge Wire Collector

Product Code: 3159
Category:Water strainer & nozzle
Material:Stainless Steel
Properties:Water strainer & nozzle
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to US Start Order


Author: Maria
Email:sales@ubooem.com

Description of Wedge Wire Collector


Wedge Wire Collectors are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters, and in many water and waste water treatment applications.

Wedge Wire Collector may have multiple tiers of wedge wire screen laterals.
Wedge Wire Collectors are available for larger diameter filters. Wedge wire screen laterals make excellent collectors. A perforated pipe distributor can be added to improve back-wash distribution and increase strength.

Wedge Wire screen cylinders can be designed with slot openings and wires running radially on the outside for flow from outside to inside. Or they can be positioned axially on the inside of the cylinder for flow from inside to outside.

Economical wedge wire screen nozzles can be used as collectors in false bottom (tube sheet) vessel installations.

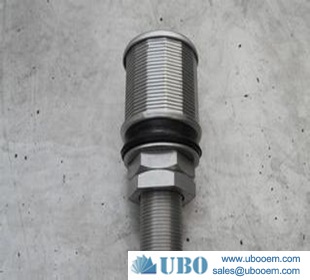

Wedge  Wire  Collector

Application of Wedge  Wire  Collector

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water

Features of Wedge  Wire  Collector

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.

2.Low cost operation.

3. Reduce the abrasion of the pump.

4. Extend the life span of well

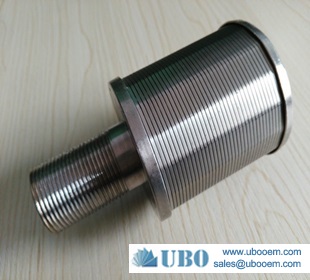

Wedge Wire Collectors

UBO is specialized in producing and distributing filter, filter element,polymeric filter,filter strainer,wedge wire screen etc.Welcome to contact us for more information and cooperation. Call: 0086-0311-83289301

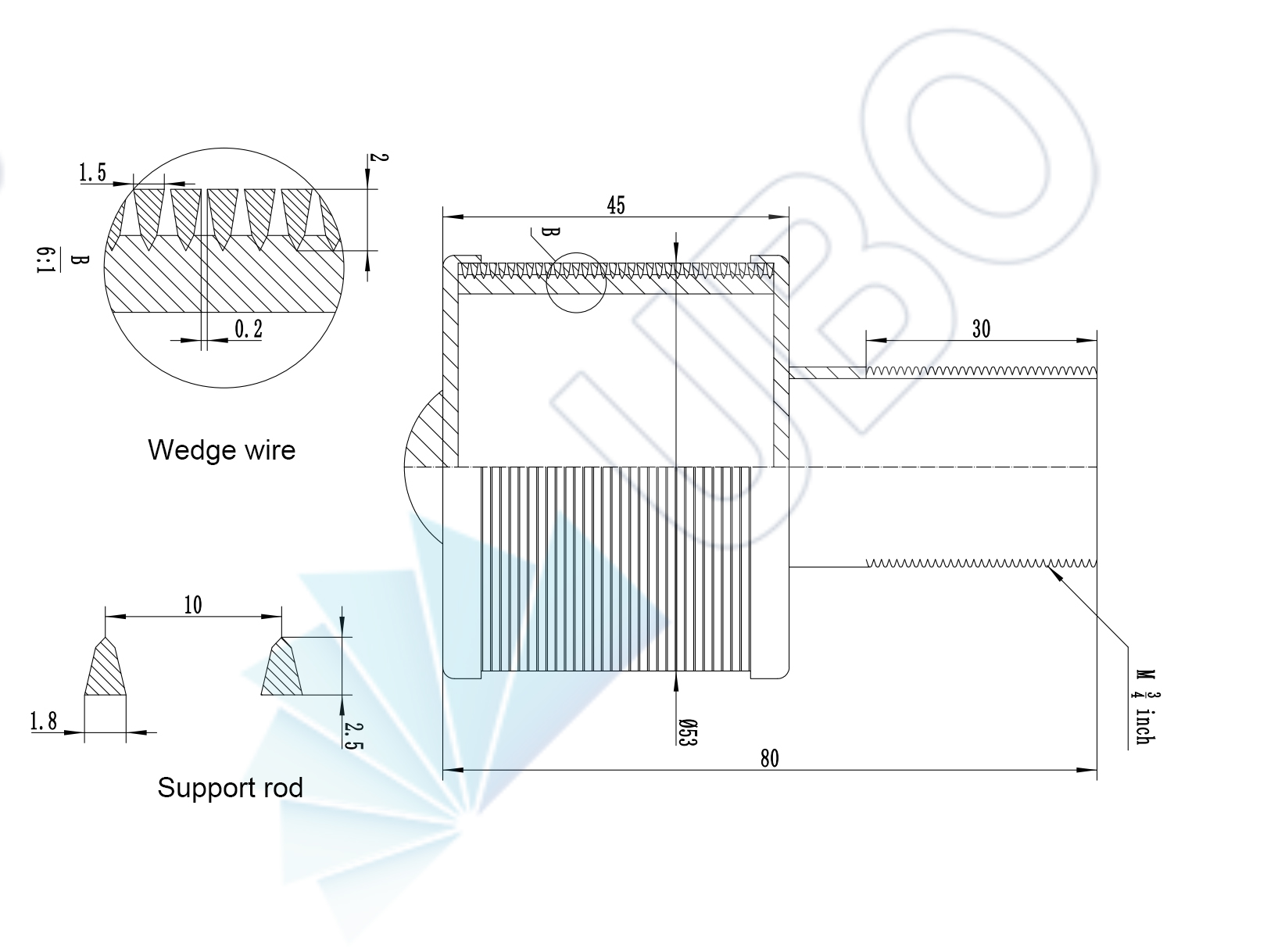

Specification of the Wedge Wire Collector


Material:stainless steel

Wire diameter:  1.5x2mm,2x3mm

Support bar:1.8*2.5mm,1*2mm

No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2 (reference)

D

L1

L

M

1

TYS45-1-C

0.5

0.2-0.5

45

45

95

24

500

2

TYS53-2-B

1

0.2-0.5

53

45

100

24

570

3

TYS53-2-C

1.5

0.2-0.5

53

50

110

32

700

4

TYS57-3-B

2

0.2-0.5

57

45

110

32

600

5

TYS70-4-B

3

0.2-0.5

70

55

120

32

1000

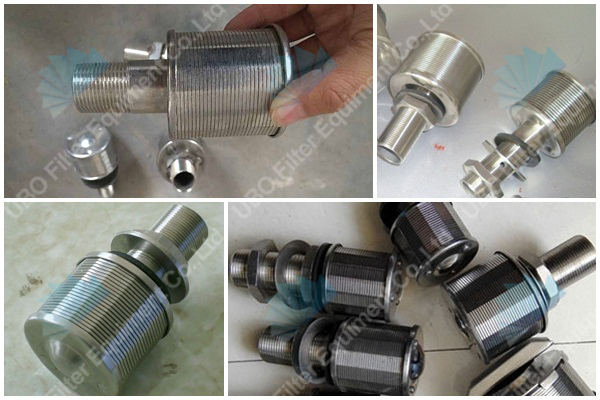

Wedge  Wire  Collector
