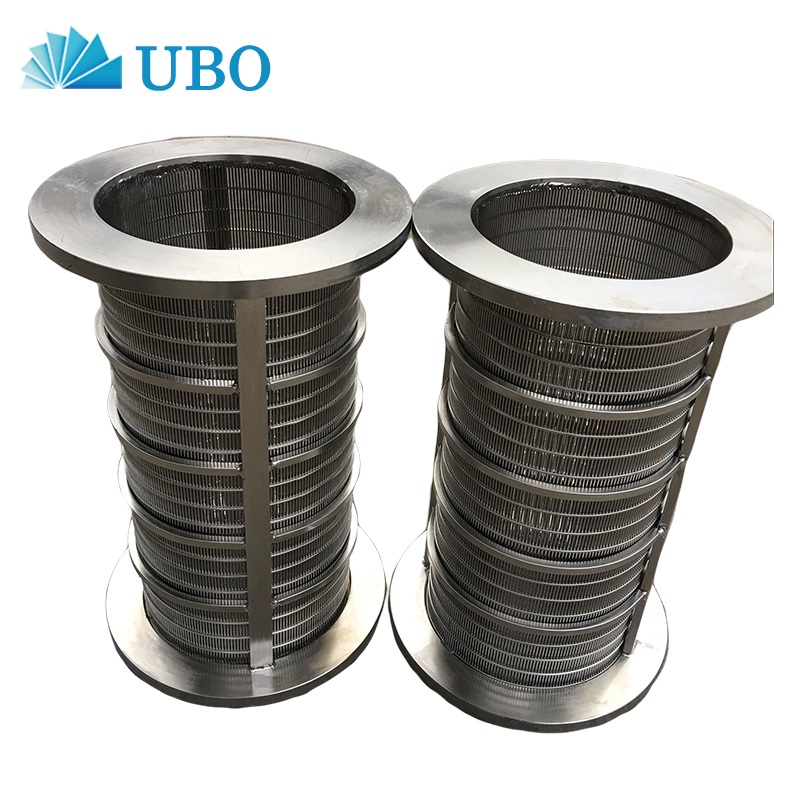

V-wire pressure screen slotted basket

Product Code: 3575
Category:Centrifuge Screens and Baskets
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request.
Properties:Wedge Wire Screen Basket
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of V-wire pressure screen slotted basket


Wedge wire screen strainer baskets have flat type, cylinder type, slope type and basket type. So Wedge wire screen is called as flat welded screen panel, cylinder wedge screen and sieve bend screen basket.
    Wedge wire screen baskets are producing by profile wire and support rods with the materials of galvanized steel, stainless steel and low carbon steel.

Application for V-wire pressure screen slotted basket:

widely used in mineral processing,coal processing,food processing,water treatment,petrochemical industry,architecture industry, as well as many other applications involving liquid & solids separation.

Advantages for V-wire pressure screen slotted basket :

1.A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
2.A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
3.A uniform and efficient well development due to the continuous slot opening.
4.Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.

Working Principle for V-wire pressure screen slotted basket:

Wedge wire screen strainer baskets under the rotating function of drum sieve and rotating cylinder and centrifugation effect. The machine will separate the qualified pulp and non-qualified pulp.It consist of cylinder, cylinder cover, sieve drum, rotary cylinder,base and transmission parts, etc.

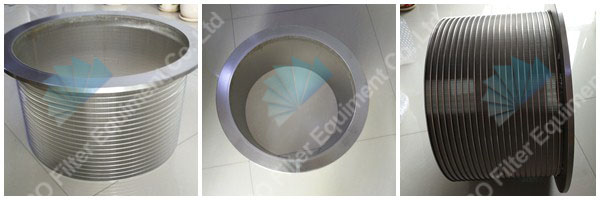

V-wire pressure screen slotted basket

Specification of the V-wire pressure screen slotted basket


size

inner diameter

outer diameter

in
mm
in
mm
in
mm
2
51
2
51

25/8

67

3
76
3
76

35/8

92
4
102
4
102

45/8

117
5
127
5
127

55/8

143
6
152
6
152

65/8

168
8
203
8
203

85/8

219
10
254
10
254

103/4

273
12
305
10
305

123/4

324

Production And Sales of V-wire pressure screen slotted basket

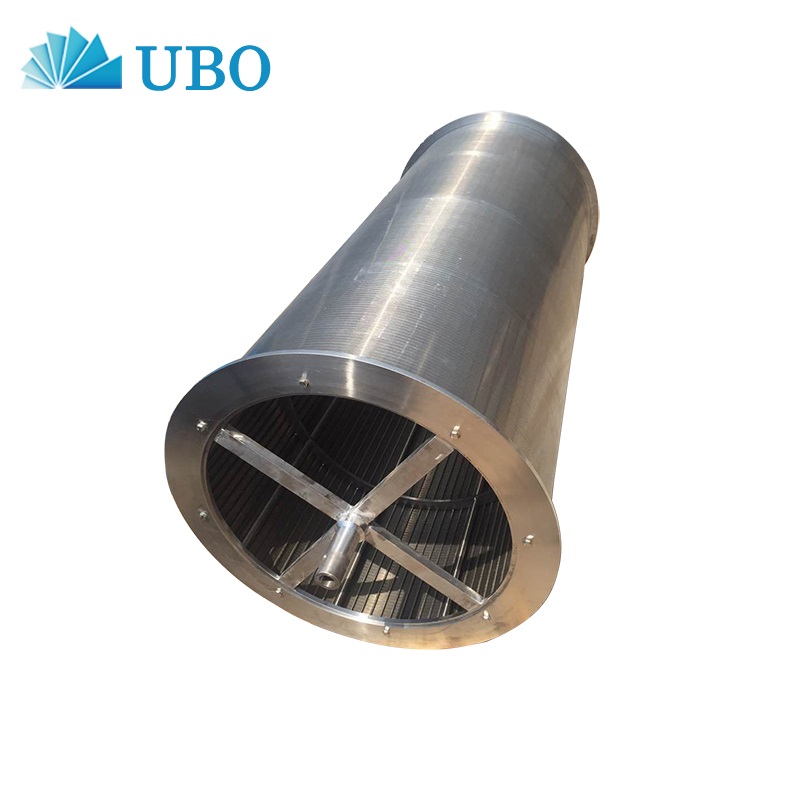

V-wire pressure screen slotted basket
