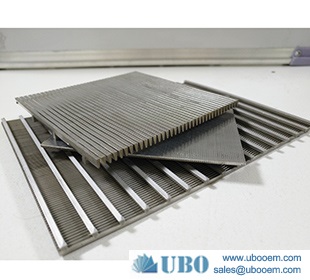

V shaped wire welded stainless steel 304 screen flat panel

Product Code: 3552
Category:Water strainer & nozzle
Material:stainless steel 304,304L,316,316L, or as per your request.
Properties:wedge wire screen panel
Application:water-treatment,beer brewing,water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant,refining & petrochemical

Email to US Start Order


Author: Eva
Email:sales@ubooem.com

Description of V shaped wire welded stainless steel 304 screen flat panel


V shaped wire welded stainless steel 304 screen flat panel consist of V shape profile wire and the longitudinal support rods. Each intersecting point the Vshape section plane can avoid blockage ,and make sure of the unimpeded water. The consecutive slot have more open area ,and it can reduce the speed of the water entering to of these wires is fusion welded ,so it has sturdy constriction and good mechanical property. Avoid the sand entering the screen under the great pressure ,so it can filter sand better.
Meanwhile, the slot can change according to the real condition of the earth.If you are interested in our product ,please contact us, and for more information.




Feature of V shaped wire welded stainless steel 304 screen flat panel

Accurate slot gap, high efficiency performance, stable structure, anti-high temperature, anti-corrosive, good mechanical properties, long-lasting and durable, safe and reliable, various field can be applied.

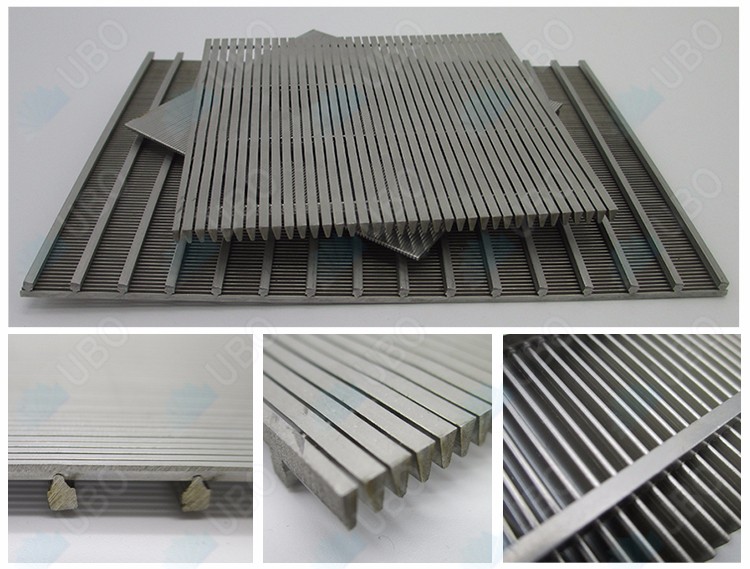

flat screen panel



Application of V shaped wire welded stainless steel 304 screen flat panel

Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and other industries. For sieving liquid, powder and other materials. In petroleum, chemical industry, metallurgy, mining, pharmaceutical purification and drilling liquid purification.

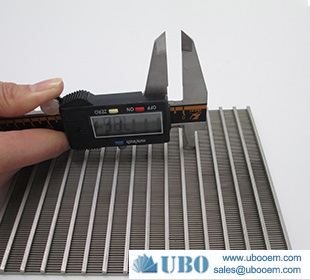

flat screen panel

Specification of the V shaped wire welded stainless steel 304 screen flat panel


Wedge wire screen panel
Material: AISI304/316/316L,Galvanized low carton.
Wedge Wire (mm): Width : 1.50 1.80 2.30 3.00 3.30 3.70
Height : 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod (mm): Width : 2.30 3.00 3.30 3.70
Height : 2.70 3.60 4.70 5.60 6.30
Round : 2.50mm -- 6.0mm
Slot /opening Size 0.10 -- 6.00mm ,also can be customized as your request.
Lengt Can be customized as your request
Width 25mm -- 1200mm.
Note: Other specifications can be customized according to your requirement.

Production And Sales of V shaped wire welded stainless steel 304 screen flat panel


V shaped wire welded stainless steel 304 screen flat panel
