Stainless wedge wire Hub and header laterals pipe

Product Code: 3311
Category:Header-Lateral
Material:stainless steel 304,304L,304HC,316,316L,321,430 or as per your request
Properties:wedge wire screen
Application:water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant

Email to US Start Order


Author: summer
Email:sales@ubooem.com

Description of Stainless wedge wire Hub and header laterals pipe


Wedge wire distributor systems may have multiple tiers of wedge wire screen laterals.
Wedge wire distributors are available for larger diameter filters. Wedge wire screen laterals make excellent collectors. A perforated pipe distributor can be added to improve back--wash distribution and increase strength.

Stainless wedge wire Hub and header laterals pipe can be designed with slot openings and wires running radially on the outside for flow from outside to inside. Or they can be positioned axially on the inside of the cylinder for flow from inside to outside.

Stainless wedge wire Hub and header laterals pipe can be used as collectors in false bottom (tube sheet) vessel installations.

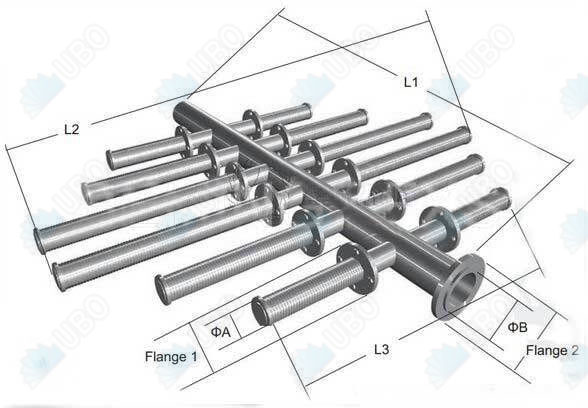

Stainless wedge wire Hub and header laterals pipe

Features of Stainless wedge wire Hub and header laterals pipe

UBO technology can also make several kinds of lateral collector / center distribution deainage device: Crossing type,fish bone lateral type and straight type.the characterics of our center distibution drainage device:bigger circulation area,Water distribution uniformity.High mechanical strength.Thermal enduance.Resistance to pressure,Anti-aging,Resistance to corrosion.The size for slot can be decided by the size of resin.

Application of Stainless wedge wire Hub and header laterals pipe

application in deep well pump to dive the water pump, in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment; the petroleum industry, the petroleum product terminal filters; and the chemical acid, the alkali liquid filters, the ethyl alcohol and the organic solution recycling filters.

        Stainless wedge wire Hub and header laterals pipe

Specification of the Stainless wedge wire Hub and header laterals pipe


Stainless wedge wire Hub and header laterals pipe

No.

(mm)TYPE

OD

(mm)

ID

(mm)

Support wire Number

Filter direction

1

SRD 40

40

31

8/10

FOTI/FITO

2

SRD 45

45

36

10/12

FOTI/FITO

3

SRD 48

48

38

12

FOTI/FITO

4

SRD 60

60

51

12

FOTI/FITO

5

SRD 70

70

61

12/18

FOTI/FITO

6

SRD 85

85

76

18

FOTI/FITO

7

SRD 110

110

101

24

FOTI/FITO

8

SRD120

120

111

24

FOTI/FITO

Production And Sales of Stainless wedge wire Hub and header laterals pipe


Stainless wedge wire Hub and header laterals pipe
