| Category: | Sieve Plate Screen |
| Material: | stainless steel 304,304L,304HC,316,316L,321,430 or as per your request. |
| Properties: | wedge wire screen |
| Application: | water-treatment , water well drilling ,oil well drilling ,mineral processing, coal-cleaning plant |
Stainless steel202 Vibrating Screen Decking for shakers used in a variety of applications ranging from classifying to recovering usable products that would end up in sewer line to capturing solids from effluents.
A continuous slot screen sieve bend gives you a great amount of open area, is significantly more affordable and requires less maintenance than vibrating or rotary drum options.

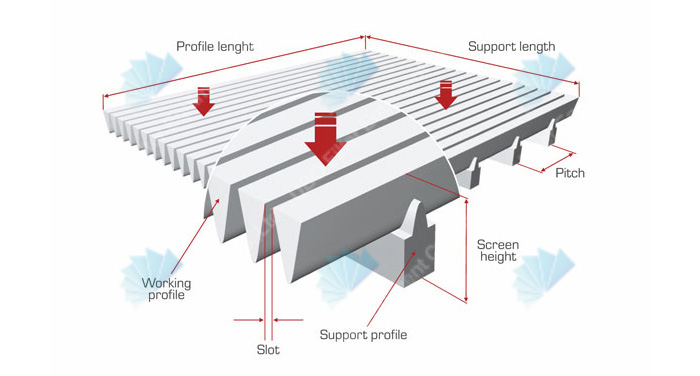

It's made of support rod and wire , wire shape is normally triangle wire ,
support rode shape could be triangle wire, round wire , cuboid wire .
1. It has high mechanical strength, can bear large pressure drop.
2. It has equal slots for filtering, can form equally distributed filter cake, easy to clean for reuse.
3. The wedge type slot can improve backflushing and regeneration performance.
4. It has resistance to pressure, temperature, aging, corrosion, can be applied for different kinds of fluid.
Mineral processing;
Hatchery screens;
Food processing;
Surface water intake screens;
Fish diversion screen panels;
Vibrating or static screen decking;
Flooring for malt kiln, germination, and grain drying.
Ubo is specialized in producing and distributing wedge wire screen,lauter tun screens,sieve bend screen,sieve plate screen,water strainer&nozzle,screen nozzles,centrifuge screens and baskets,header-lateral.
Welcome to contact us for more information and cooperation.0086-0311-83289301.
wedge wire: 1.5*2mm 2*3mm , also could be as per your requirement
support wire: 2*3mm 3*5mm 4*6mm, also could be as per your requirement
slot size: min 0.02mm
supporting wire space , length , width as per your requirement .
|
Name: |
Stainless steel202 Vibrating Screen |
|
Material: |
stainless steel (304,316etc.) |
|
Wedge Wire (mm): |
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70 |
|
Height : 1.50 2.00 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
|
|
Support Rod (mm): |
Width : 1.00 1.80 2.00 3.00 4.00 5.00 |
|
Height : 2.00 2.50 3.00 5.00 6.00 8.00 |
|
|
Width: |
from 1 inch -----45 inch. |
|
Length: |
lengths up to 6 meters. |
|
Slot size: |
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved request. |
|
Pitch: |
10-300mm |
|
Note: |
Other specifications can be customized according to your requirement |
